| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_216T01_9000006356_47840cztM0_level2.fits | modeM0/AS1T05_216T01_9000006356_47840cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,710,080 | 112,152,960 |
| Size | 586.2 MB | 107.0 MB |
| Events in quadrant A | 7,494,238 | 742,293 |
| Events in quadrant B | 5,187,390 | 719,545 |
| Events in quadrant C | 3,331,306 | 773,526 |
| Events in quadrant D | 6,175,246 | 652,081 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28076 | 2 |
| B | 0 | 20256 | 2 |
| C | 0 | 15354 | 2 |
| D | 0 | 23368 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7303 | 616 | 8.434890% |
| B | 7304 | 1010 | 13.828039% |
| C | 7304 | 240 | 3.285871% |
| D | 7304 | 868 | 11.883899% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9003 | 7303 | 4 | 4 | 0.04% | 0.05% |  |
| B | 9004 | 7304 | 595 | 595 | 6.61% | 8.15% |  |
| C | 9004 | 7304 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9004 | 7304 | 628 | 628 | 6.97% | 8.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4228619 | 23872.74 | 842 | 821 | 177.1 |
| A | 3 | 137 | 10058 | 52.16 | 842 | 821 | 177.1 |
| A | 10 | 255 | 8724 | 44.63 | 842 | 821 | 177.1 |
| B | 0 | 186 | 1642616 | 10039.17 | 817 | 791 | 163.5 |
| B | 4 | 21 | 167190 | 1017.47 | 817 | 791 | 163.5 |
| B | 0 | 245 | 63597 | 384.03 | 817 | 791 | 163.5 |
| C | 14 | 254 | 20539 | 98.72 | 844 | 848 | 199.5 |
| C | 3 | 110 | 10156 | 46.67 | 844 | 848 | 199.5 |
| C | 3 | 233 | 8818 | 39.96 | 844 | 848 | 199.5 |
| D | 12 | 2 | 1333722 | 6372.57 | 825 | 796 | 209.2 |
| D | 2 | 37 | 829830 | 3963.52 | 825 | 796 | 209.2 |
| D | 2 | 165 | 322650 | 1538.75 | 825 | 796 | 209.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

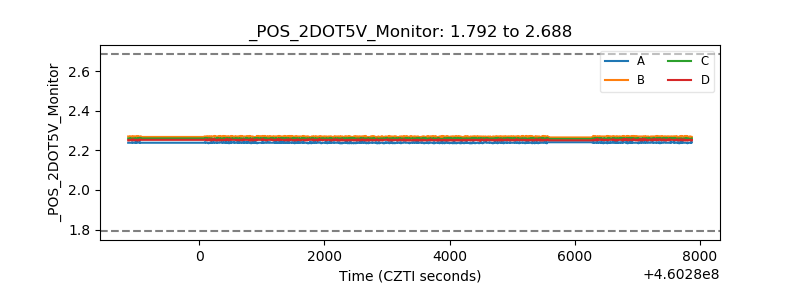

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
