| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_216T01_9000006356_47842cztM0_level2.fits | modeM0/AS1T05_216T01_9000006356_47842cztM0_level2_quad_clean.evt |
| Size (bytes) | 696,075,840 | 108,624,960 |
| Size | 663.8 MB | 103.6 MB |
| Events in quadrant A | 7,253,657 | 772,671 |
| Events in quadrant B | 3,599,118 | 779,434 |
| Events in quadrant C | 3,272,774 | 760,526 |
| Events in quadrant D | 11,080,070 | 472,052 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27305 | 0 |
| B | 0 | 15824 | 0 |
| C | 0 | 15247 | 0 |
| D | 0 | 37939 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7241 | 115 | 1.588178% |
| B | 7242 | 95 | 1.311792% |
| C | 7242 | 35 | 0.483292% |
| D | 7241 | 2707 | 37.384339% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7241 | 7241 | 8 | 8 | 0.11% | 0.11% |  |
| B | 7242 | 7242 | 62 | 62 | 0.86% | 0.86% |  |
| C | 7242 | 7242 | 31 | 31 | 0.43% | 0.43% |  |
| D | 7240 | 7240 | 2426 | 2426 | 33.51% | 33.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4129646 | 24729.45 | 800 | 782 | 167.0 |
| A | 13 | 248 | 15177 | 86.22 | 800 | 782 | 167.0 |
| A | 10 | 255 | 14914 | 84.64 | 800 | 782 | 167.0 |
| B | 0 | 186 | 199475 | 1275.48 | 789 | 767 | 155.8 |
| B | 4 | 21 | 70252 | 446.01 | 789 | 767 | 155.8 |
| B | 5 | 252 | 43887 | 276.78 | 789 | 767 | 155.8 |
| C | 12 | 2 | 120756 | 648.22 | 784 | 789 | 185.1 |
| C | 14 | 254 | 58020 | 309.24 | 784 | 789 | 185.1 |
| C | 12 | 249 | 18410 | 95.21 | 784 | 789 | 185.1 |
| D | 2 | 165 | 6248699 | 36441.23 | 675 | 656 | 171.5 |
| D | 12 | 2 | 1452578 | 8468.22 | 675 | 656 | 171.5 |
| D | 2 | 37 | 544857 | 3174.01 | 675 | 656 | 171.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

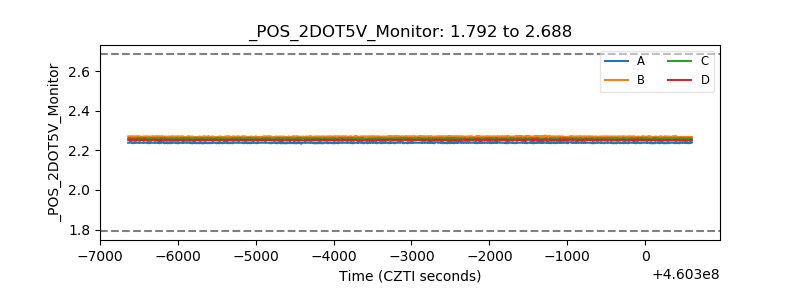

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
