| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_073T04_9000006358_47850cztM0_level2.fits | modeM0/AS1A13_073T04_9000006358_47850cztM0_level2_quad_clean.evt |
| Size (bytes) | 403,790,400 | 77,296,320 |
| Size | 385.1 MB | 73.7 MB |
| Events in quadrant A | 4,779,462 | 536,302 |
| Events in quadrant B | 2,227,656 | 566,315 |
| Events in quadrant C | 2,260,247 | 526,911 |
| Events in quadrant D | 5,295,390 | 364,476 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17311 | 1 |
| B | 0 | 10195 | 1 |
| C | 0 | 10567 | 1 |
| D | 0 | 19430 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4936 | 145 | 2.937601% |
| B | 4936 | 37 | 0.749595% |
| C | 4936 | 45 | 0.911669% |
| D | 4935 | 1228 | 24.883485% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6066 | 4936 | 49 | 49 | 0.81% | 0.99% |  |
| B | 6066 | 4936 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6066 | 4937 | 26 | 26 | 0.43% | 0.53% |  |
| D | 6065 | 4935 | 1230 | 1230 | 20.28% | 24.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2716153 | 24504.94 | 532 | 522 | 110.8 |
| A | 7 | 3 | 12515 | 108.22 | 532 | 522 | 110.8 |
| A | 3 | 137 | 6108 | 50.41 | 532 | 522 | 110.8 |
| B | 0 | 198 | 25353 | 232.98 | 539 | 521 | 106.6 |
| B | 4 | 21 | 20084 | 183.54 | 539 | 521 | 106.6 |
| B | 5 | 255 | 15634 | 141.79 | 539 | 521 | 106.6 |
| C | 1 | 3 | 193179 | 1562.86 | 522 | 526 | 123.3 |
| C | 12 | 2 | 21099 | 166.89 | 522 | 526 | 123.3 |
| C | 14 | 254 | 9289 | 71.09 | 522 | 526 | 123.3 |
| D | 2 | 165 | 1834325 | 16091.67 | 457 | 443 | 114.0 |
| D | 2 | 37 | 982138 | 8614.03 | 457 | 443 | 114.0 |
| D | 12 | 2 | 375243 | 3288.74 | 457 | 443 | 114.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

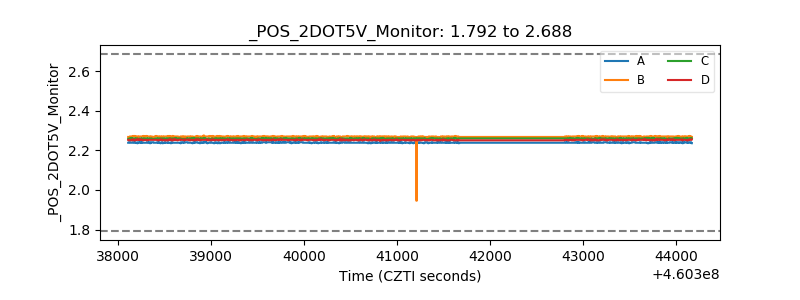

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
