| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_073T04_9000006358_47853cztM0_level2.fits | modeM0/AS1A13_073T04_9000006358_47853cztM0_level2_quad_clean.evt |
| Size (bytes) | 326,183,040 | 72,486,720 |
| Size | 311.1 MB | 69.1 MB |
| Events in quadrant A | 4,147,382 | 476,822 |
| Events in quadrant B | 2,028,493 | 515,942 |
| Events in quadrant C | 1,947,716 | 479,265 |
| Events in quadrant D | 3,604,641 | 409,982 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19244 | 3895 |
| B | 0 | 10930 | 1756 |
| C | 0 | 10957 | 1730 |
| D | 0 | 15860 | 1960 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 1 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 12 |
| B | 0 | 109 | 17 |
| C | 0 | 104 | 9 |
| D | 0 | 108 | 14 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4356 | 75 | 1.721763% |
| B | 4468 | 19 | 0.425246% |
| C | 4480 | 3 | 0.066964% |
| D | 4461 | 332 | 7.442278% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6904 | 4429 | 10 | 10 | 0.14% | 0.23% |  |
| B | 6904 | 4571 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6905 | 4578 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6905 | 4560 | 274 | 274 | 3.97% | 6.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2262545 | 22243.78 | 485 | 475 | 101.7 |
| A | 7 | 3 | 11967 | 113.0 | 485 | 475 | 101.7 |
| A | 3 | 137 | 5600 | 50.39 | 485 | 475 | 101.7 |
| B | 0 | 198 | 22325 | 221.6 | 498 | 483 | 98.6 |
| B | 4 | 21 | 12519 | 122.11 | 498 | 483 | 98.6 |
| B | 12 | 111 | 12281 | 119.7 | 498 | 483 | 98.6 |
| C | 14 | 254 | 29474 | 254.11 | 484 | 485 | 114.1 |
| C | 12 | 250 | 18472 | 157.67 | 484 | 485 | 114.1 |
| C | 12 | 2 | 6426 | 52.08 | 484 | 485 | 114.1 |
| D | 12 | 2 | 771106 | 6413.42 | 471 | 454 | 120.2 |
| D | 2 | 165 | 599230 | 4983.06 | 471 | 454 | 120.2 |
| D | 2 | 249 | 157880 | 1310.11 | 471 | 454 | 120.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

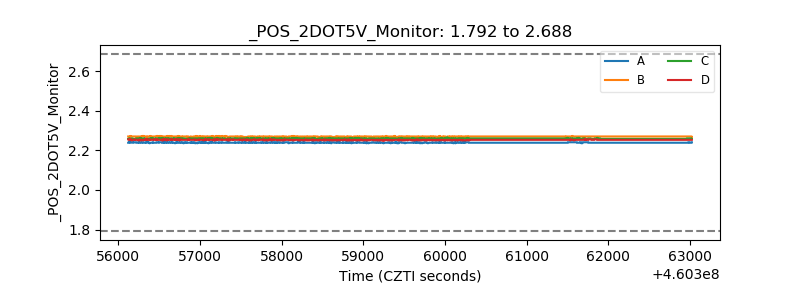

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
