| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_073T04_9000006358_47854cztM0_level2.fits | modeM0/AS1A13_073T04_9000006358_47854cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,144,486,080 | 255,444,480 |
| Size | 1.1 GB | 243.6 MB |
| Events in quadrant A | 15,465,719 | 1,709,596 |
| Events in quadrant B | 7,166,219 | 1,803,133 |
| Events in quadrant C | 6,778,403 | 1,688,681 |
| Events in quadrant D | 11,733,927 | 1,443,604 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56978 | 3 |
| B | 0 | 32596 | 3 |
| C | 0 | 32415 | 3 |
| D | 0 | 46453 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 322 | 0 |
| B | 0 | 322 | 0 |
| C | 0 | 322 | 0 |
| D | 0 | 322 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15794 | 447 | 2.830189% |
| B | 15795 | 174 | 1.101614% |
| C | 15795 | 55 | 0.348211% |
| D | 15794 | 1164 | 7.369887% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19118 | 15795 | 78 | 78 | 0.41% | 0.49% |  |
| B | 19119 | 15795 | 16 | 16 | 0.08% | 0.10% |  |
| C | 19119 | 15796 | 13 | 13 | 0.07% | 0.08% |  |
| D | 19118 | 15794 | 975 | 975 | 5.10% | 6.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8666347 | 24160.64 | 1747 | 1714 | 358.6 |
| A | 7 | 3 | 59215 | 160.34 | 1747 | 1714 | 358.6 |
| A | 3 | 137 | 20169 | 51.46 | 1747 | 1714 | 358.6 |
| B | 0 | 198 | 71055 | 204.07 | 1753 | 1697 | 339.9 |
| B | 4 | 21 | 66546 | 190.8 | 1753 | 1697 | 339.9 |
| B | 5 | 255 | 44996 | 127.4 | 1753 | 1697 | 339.9 |
| C | 14 | 254 | 88233 | 219.36 | 1699 | 1702 | 394.5 |
| C | 1 | 3 | 25963 | 61.5 | 1699 | 1702 | 394.5 |
| C | 12 | 2 | 23795 | 56.01 | 1699 | 1702 | 394.5 |
| D | 12 | 2 | 2195035 | 5333.2 | 1660 | 1609 | 411.3 |
| D | 2 | 249 | 1080957 | 2624.38 | 1660 | 1609 | 411.3 |
| D | 2 | 165 | 980537 | 2380.21 | 1660 | 1609 | 411.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

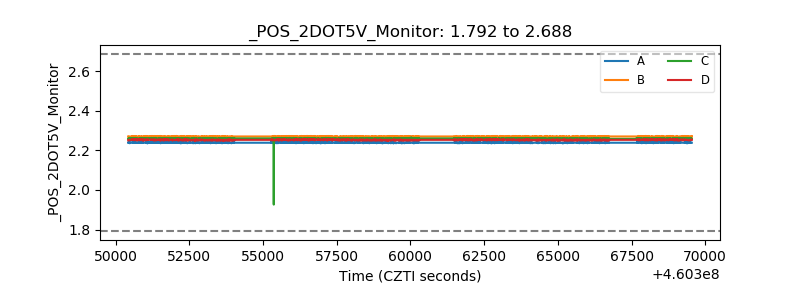

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
