| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_038T16_9000006364_47861cztM0_level2.fits | modeM0/AS1A09_038T16_9000006364_47861cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,144,425,600 | 183,545,280 |
| Size | 1.1 GB | 175.0 MB |
| Events in quadrant A | 12,209,420 | 1,272,894 |
| Events in quadrant B | 5,533,080 | 1,309,011 |
| Events in quadrant C | 5,377,497 | 1,271,121 |
| Events in quadrant D | 18,278,002 | 840,135 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 254 | 0 |
| B | 0 | 254 | 0 |
| C | 0 | 254 | 0 |
| D | 0 | 254 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44557 | 10 |
| B | 0 | 25704 | 2 |
| C | 0 | 25850 | 2 |
| D | 0 | 62976 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12489 | 378 | 3.026663% |
| B | 12491 | 104 | 0.832599% |
| C | 12491 | 97 | 0.776559% |
| D | 12492 | 3897 | 31.195965% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13886 | 12492 | 53 | 53 | 0.38% | 0.42% |  |
| B | 13886 | 12492 | 6 | 6 | 0.04% | 0.05% |  |
| C | 13886 | 12491 | 45 | 45 | 0.32% | 0.36% |  |
| D | 13887 | 12493 | 4005 | 4005 | 28.84% | 32.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7071470 | 25789.04 | 1318 | 1287 | 274.2 |
| A | 7 | 3 | 30708 | 107.32 | 1318 | 1287 | 274.2 |
| A | 3 | 137 | 15667 | 52.45 | 1318 | 1287 | 274.2 |
| B | 4 | 21 | 80724 | 307.12 | 1325 | 1283 | 258.7 |
| B | 5 | 255 | 51335 | 193.5 | 1325 | 1283 | 258.7 |
| B | 0 | 183 | 42183 | 158.12 | 1325 | 1283 | 258.7 |
| C | 12 | 2 | 180173 | 589.81 | 1302 | 1309 | 303.3 |
| C | 14 | 254 | 50956 | 163.71 | 1302 | 1309 | 303.3 |
| C | 9 | 237 | 27926 | 87.77 | 1302 | 1309 | 303.3 |
| D | 2 | 37 | 8364104 | 29047.22 | 1135 | 1097 | 287.9 |
| D | 2 | 165 | 3153176 | 10948.11 | 1135 | 1097 | 287.9 |
| D | 12 | 2 | 983453 | 3412.02 | 1135 | 1097 | 287.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

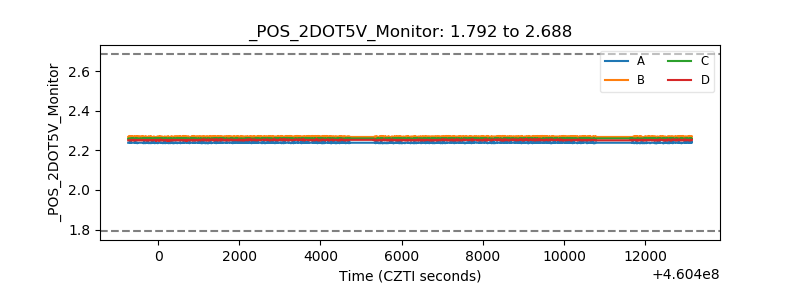

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
