| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_038T22_9000006368_47869cztM0_level2.fits | modeM0/AS1A09_038T22_9000006368_47869cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,180,480 | 104,734,080 |
| Size | 409.3 MB | 99.9 MB |
| Events in quadrant A | 6,288,126 | 678,135 |
| Events in quadrant B | 2,847,856 | 709,715 |
| Events in quadrant C | 2,749,149 | 697,042 |
| Events in quadrant D | 3,496,141 | 632,505 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23189 | 1 |
| B | 0 | 13295 | 1 |
| C | 0 | 13206 | 1 |
| D | 0 | 15046 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6507 | 209 | 3.211926% |
| B | 6508 | 81 | 1.244622% |
| C | 6508 | 49 | 0.752919% |
| D | 6508 | 72 | 1.106331% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7232 | 6508 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7233 | 6509 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7233 | 6509 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7233 | 6509 | 30 | 30 | 0.41% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3561887 | 24666.88 | 693 | 677 | 144.4 |
| A | 13 | 248 | 34837 | 236.61 | 693 | 677 | 144.4 |
| A | 7 | 3 | 16047 | 106.46 | 693 | 677 | 144.4 |
| B | 5 | 32 | 30081 | 215.19 | 701 | 676 | 136.6 |
| B | 12 | 111 | 17540 | 123.41 | 701 | 676 | 136.6 |
| B | 0 | 197 | 17331 | 121.88 | 701 | 676 | 136.6 |
| C | 13 | 61 | 4668 | 23.99 | 702 | 705 | 165.2 |
| C | 14 | 67 | 4314 | 21.85 | 702 | 705 | 165.2 |
| C | 14 | 254 | 3992 | 19.9 | 702 | 705 | 165.2 |
| D | 2 | 165 | 400916 | 2312.25 | 695 | 674 | 173.1 |
| D | 12 | 2 | 251091 | 1446.69 | 695 | 674 | 173.1 |
| D | 2 | 249 | 60769 | 347.18 | 695 | 674 | 173.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

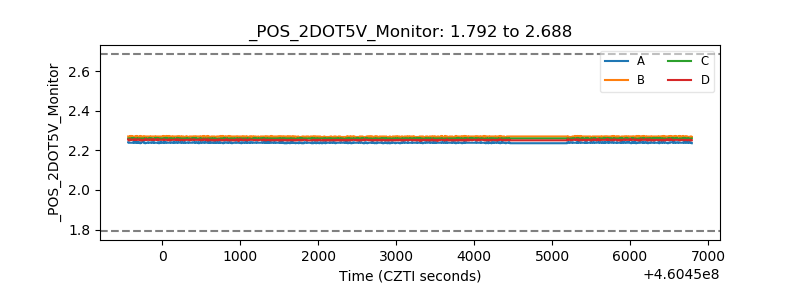

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
