| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006370_47876cztM0_level2.fits | modeM0/AS1A13_053T01_9000006370_47876cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,691,200 | 105,168,960 |
| Size | 489.9 MB | 100.3 MB |
| Events in quadrant A | 6,660,722 | 695,762 |
| Events in quadrant B | 2,947,873 | 723,616 |
| Events in quadrant C | 2,819,695 | 698,696 |
| Events in quadrant D | 6,070,495 | 601,596 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24034 | 1 |
| B | 0 | 13597 | 1 |
| C | 0 | 13464 | 1 |
| D | 0 | 22695 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6660 | 215 | 3.228228% |
| B | 6661 | 30 | 0.450383% |
| C | 6661 | 11 | 0.165140% |
| D | 6661 | 601 | 9.022669% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7555 | 6661 | 68 | 68 | 0.90% | 1.02% |  |
| B | 7556 | 6662 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7556 | 6662 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7556 | 6662 | 558 | 558 | 7.38% | 8.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3844038 | 25559.62 | 720 | 704 | 150.4 |
| A | 7 | 3 | 23979 | 154.79 | 720 | 704 | 150.4 |
| A | 0 | 31 | 12408 | 77.84 | 720 | 704 | 150.4 |
| B | 5 | 255 | 41077 | 281.53 | 724 | 700 | 143.4 |
| B | 12 | 111 | 18518 | 124.23 | 724 | 700 | 143.4 |
| B | 8 | 234 | 17026 | 113.83 | 724 | 700 | 143.4 |
| C | 12 | 2 | 26798 | 154.48 | 711 | 714 | 168.9 |
| C | 14 | 254 | 17567 | 99.81 | 711 | 714 | 168.9 |
| C | 13 | 61 | 4844 | 24.46 | 711 | 714 | 168.9 |
| D | 2 | 165 | 2785586 | 16070.6 | 684 | 662 | 173.3 |
| D | 2 | 249 | 199305 | 1146.28 | 684 | 662 | 173.3 |
| D | 12 | 2 | 131865 | 757.12 | 684 | 662 | 173.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

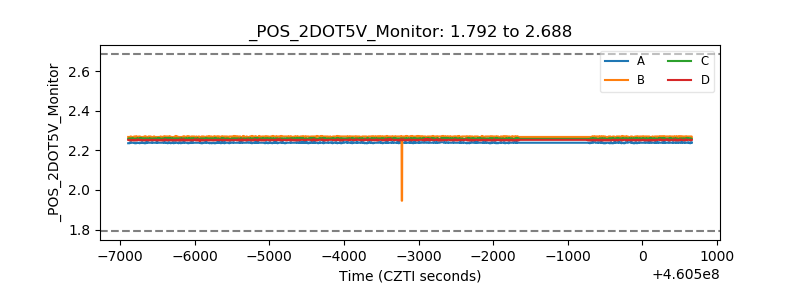

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
