| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006370_47881cztM0_level2.fits | modeM0/AS1A13_053T01_9000006370_47881cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,609,600 | 109,235,520 |
| Size | 504.1 MB | 104.2 MB |
| Events in quadrant A | 6,821,474 | 730,138 |
| Events in quadrant B | 3,249,332 | 777,572 |
| Events in quadrant C | 3,015,810 | 761,374 |
| Events in quadrant D | 5,967,825 | 577,664 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24807 | 2 |
| B | 0 | 14257 | 2 |
| C | 0 | 13642 | 2 |
| D | 0 | 22491 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6609 | 246 | 3.722197% |
| B | 6610 | 128 | 1.936460% |
| C | 6609 | 19 | 0.287487% |
| D | 6609 | 1204 | 18.217582% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9019 | 6611 | 70 | 70 | 0.78% | 1.06% |  |
| B | 9020 | 6612 | 55 | 55 | 0.61% | 0.83% |  |
| C | 9019 | 6611 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9019 | 6611 | 973 | 973 | 10.79% | 14.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3955733 | 25819.89 | 737 | 720 | 153.2 |
| A | 13 | 248 | 10203 | 61.91 | 737 | 720 | 153.2 |
| A | 3 | 137 | 8205 | 48.86 | 737 | 720 | 153.2 |
| B | 7 | 219 | 204805 | 1392.38 | 748 | 724 | 146.6 |
| B | 5 | 255 | 27680 | 183.91 | 748 | 724 | 146.6 |
| B | 0 | 183 | 25335 | 167.91 | 748 | 724 | 146.6 |
| C | 14 | 254 | 29812 | 163.16 | 759 | 764 | 178.0 |
| C | 3 | 233 | 11726 | 61.57 | 759 | 764 | 178.0 |
| C | 12 | 2 | 6970 | 34.86 | 759 | 764 | 178.0 |
| D | 2 | 37 | 1784694 | 10386.24 | 693 | 670 | 171.8 |
| D | 2 | 165 | 1219251 | 7094.34 | 693 | 670 | 171.8 |
| D | 2 | 249 | 137124 | 794.41 | 693 | 670 | 171.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

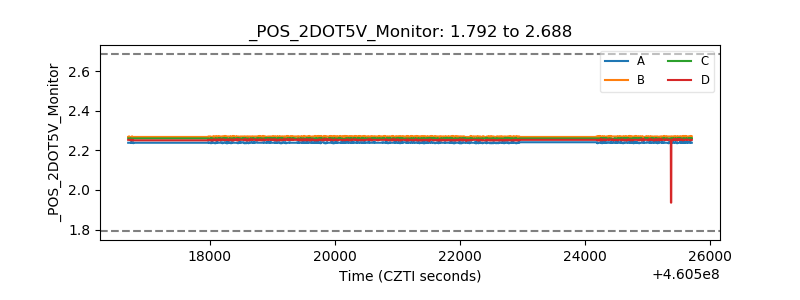

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
