| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006370_47894cztM0_level2.fits | modeM0/AS1A13_053T01_9000006370_47894cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,818,880 | 105,995,520 |
| Size | 518.6 MB | 101.1 MB |
| Events in quadrant A | 6,510,745 | 721,452 |
| Events in quadrant B | 3,005,021 | 757,579 |
| Events in quadrant C | 3,119,500 | 729,429 |
| Events in quadrant D | 6,986,142 | 542,802 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23476 | 1 |
| B | 0 | 13589 | 1 |
| C | 0 | 14037 | 1 |
| D | 0 | 25360 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6562 | 168 | 2.560195% |
| B | 6563 | 41 | 0.624714% |
| C | 6563 | 81 | 1.234192% |
| D | 6562 | 1265 | 19.277659% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7747 | 6562 | 61 | 61 | 0.79% | 0.93% |  |
| B | 7748 | 6563 | 13 | 13 | 0.17% | 0.20% |  |
| C | 7748 | 6563 | 49 | 49 | 0.63% | 0.75% |  |
| D | 7747 | 6561 | 1130 | 1130 | 14.59% | 17.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3711295 | 25074.84 | 715 | 699 | 148.0 |
| A | 7 | 3 | 23703 | 155.45 | 715 | 699 | 148.0 |
| A | 13 | 248 | 15014 | 96.74 | 715 | 699 | 148.0 |
| B | 5 | 255 | 107009 | 754.71 | 726 | 702 | 140.9 |
| B | 12 | 111 | 17813 | 121.48 | 726 | 702 | 140.9 |
| B | 11 | 111 | 16279 | 110.59 | 726 | 702 | 140.9 |
| C | 12 | 2 | 237057 | 1399.15 | 723 | 726 | 168.9 |
| C | 0 | 207 | 31565 | 182.58 | 723 | 726 | 168.9 |
| C | 1 | 3 | 18448 | 104.92 | 723 | 726 | 168.9 |
| D | 2 | 37 | 2412594 | 15017.84 | 629 | 610 | 160.6 |
| D | 12 | 2 | 1810394 | 11268.33 | 629 | 610 | 160.6 |
| D | 2 | 249 | 171308 | 1062.82 | 629 | 610 | 160.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

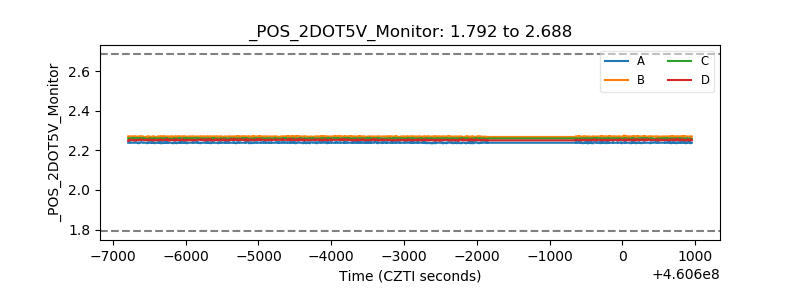

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
