| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_038T41_9000006376_47908cztM0_level2.fits | modeM0/AS1A09_038T41_9000006376_47908cztM0_level2_quad_clean.evt |
| Size (bytes) | 171,169,920 | 34,727,040 |
| Size | 163.2 MB | 33.1 MB |
| Events in quadrant A | 3,067,067 | 191,081 |
| Events in quadrant B | 1,170,671 | 244,162 |
| Events in quadrant C | 924,461 | 240,135 |
| Events in quadrant D | 1,002,656 | 219,432 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10613 | 1 |
| B | 0 | 5037 | 1 |
| C | 0 | 4435 | 1 |
| D | 0 | 4658 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2172 | 530 | 24.401473% |
| B | 2172 | 69 | 3.176796% |
| C | 2172 | 15 | 0.690608% |
| D | 2172 | 20 | 0.920810% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3202 | 2173 | 354 | 354 | 11.06% | 16.29% |  |
| B | 3202 | 2173 | 19 | 19 | 0.59% | 0.87% |  |
| C | 3202 | 2173 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3202 | 2173 | 3 | 3 | 0.09% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1353728 | 29116.98 | 215 | 211 | 46.5 |
| A | 13 | 248 | 870775 | 18727.65 | 215 | 211 | 46.5 |
| A | 0 | 31 | 3062 | 61.33 | 215 | 211 | 46.5 |
| B | 5 | 32 | 90814 | 1876.43 | 241 | 233 | 48.3 |
| B | 0 | 200 | 39819 | 820.04 | 241 | 233 | 48.3 |
| B | 8 | 234 | 37024 | 762.14 | 241 | 233 | 48.3 |
| C | 12 | 2 | 3897 | 64.25 | 235 | 236 | 57.0 |
| C | 13 | 61 | 1670 | 25.17 | 235 | 236 | 57.0 |
| C | 14 | 67 | 1474 | 21.73 | 235 | 236 | 57.0 |
| D | 2 | 249 | 25036 | 417.25 | 231 | 224 | 59.5 |
| D | 13 | 29 | 19142 | 318.14 | 231 | 224 | 59.5 |
| D | 12 | 233 | 13288 | 219.69 | 231 | 224 | 59.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

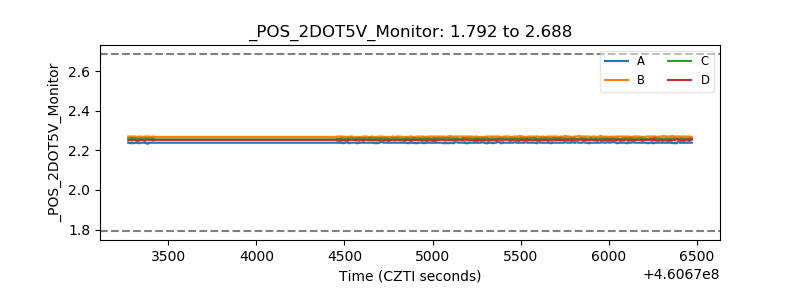

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
