| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T02_9000006378_47911cztM0_level2.fits | modeM0/AS1A13_074T02_9000006378_47911cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,211,520 | 108,573,120 |
| Size | 436.0 MB | 103.5 MB |
| Events in quadrant A | 7,312,007 | 681,840 |
| Events in quadrant B | 3,091,652 | 754,312 |
| Events in quadrant C | 2,928,237 | 734,555 |
| Events in quadrant D | 3,092,072 | 667,671 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26172 | 5 |
| B | 0 | 13535 | 2 |
| C | 0 | 13309 | 2 |
| D | 0 | 13914 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6444 | 523 | 8.116077% |
| B | 6444 | 57 | 0.884544% |
| C | 6444 | 29 | 0.450031% |
| D | 6444 | 44 | 0.682806% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7629 | 6445 | 302 | 302 | 3.96% | 4.69% |  |
| B | 7629 | 6445 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7629 | 6445 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7629 | 6445 | 18 | 18 | 0.24% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3792594 | 25782.6 | 705 | 688 | 147.1 |
| A | 13 | 248 | 798633 | 5425.53 | 705 | 688 | 147.1 |
| A | 3 | 137 | 7810 | 48.43 | 705 | 688 | 147.1 |
| B | 0 | 200 | 94110 | 650.54 | 728 | 705 | 143.6 |
| B | 0 | 198 | 45580 | 312.54 | 728 | 705 | 143.6 |
| B | 7 | 219 | 36676 | 250.53 | 728 | 705 | 143.6 |
| C | 12 | 2 | 37777 | 215.62 | 734 | 737 | 171.8 |
| C | 0 | 207 | 21606 | 121.49 | 734 | 737 | 171.8 |
| C | 13 | 61 | 4871 | 24.07 | 734 | 737 | 171.8 |
| D | 2 | 249 | 162727 | 885.52 | 730 | 706 | 183.0 |
| D | 13 | 29 | 81455 | 441.33 | 730 | 706 | 183.0 |
| D | 2 | 234 | 28114 | 149.8 | 730 | 706 | 183.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

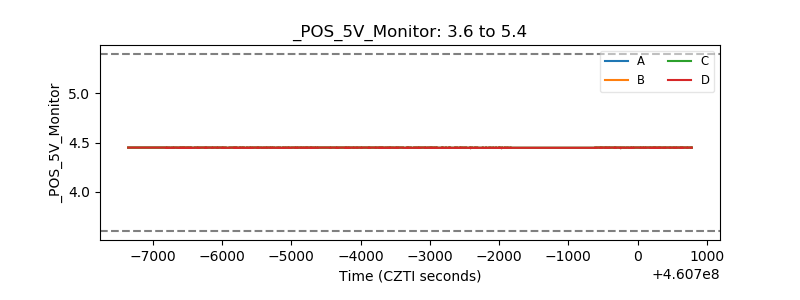

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
