| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_074T02_9000006378_47912cztM0_level2.fits | modeM0/AS1A13_074T02_9000006378_47912cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,303,040 | 106,240,320 |
| Size | 445.7 MB | 101.3 MB |
| Events in quadrant A | 7,171,485 | 675,476 |
| Events in quadrant B | 3,027,527 | 735,931 |
| Events in quadrant C | 2,898,848 | 713,630 |
| Events in quadrant D | 3,690,692 | 634,493 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25938 | 1 |
| B | 0 | 13643 | 1 |
| C | 0 | 13485 | 1 |
| D | 0 | 15862 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6560 | 458 | 6.981707% |
| B | 6561 | 71 | 1.082152% |
| C | 6561 | 49 | 0.746837% |
| D | 6560 | 260 | 3.963415% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6562 | 203 | 203 | 2.70% | 3.09% |  |
| B | 7526 | 6563 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7526 | 6563 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7525 | 6562 | 172 | 172 | 2.29% | 2.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3705843 | 24741.29 | 711 | 695 | 149.8 |
| A | 13 | 248 | 716896 | 4782.46 | 711 | 695 | 149.8 |
| A | 3 | 137 | 8310 | 50.85 | 711 | 695 | 149.8 |
| B | 0 | 200 | 66323 | 455.07 | 728 | 705 | 144.2 |
| B | 0 | 198 | 42958 | 293.03 | 728 | 705 | 144.2 |
| B | 4 | 80 | 18962 | 126.61 | 728 | 705 | 144.2 |
| C | 0 | 207 | 23815 | 133.09 | 734 | 736 | 173.4 |
| C | 12 | 2 | 9061 | 48.01 | 734 | 736 | 173.4 |
| C | 14 | 67 | 5080 | 25.05 | 734 | 736 | 173.4 |
| D | 13 | 29 | 365696 | 2016.1 | 722 | 699 | 181.0 |
| D | 11 | 224 | 268283 | 1478.03 | 722 | 699 | 181.0 |
| D | 10 | 204 | 150582 | 827.9 | 722 | 699 | 181.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

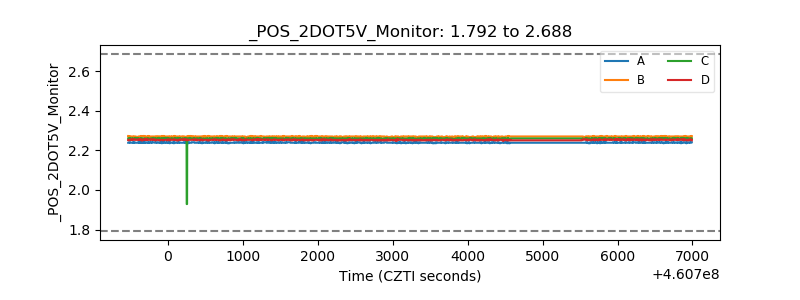

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
