| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T02_9000006380_47918cztM0_level2.fits | modeM0/AS1A13_025T02_9000006380_47918cztM0_level2_quad_clean.evt |
| Size (bytes) | 690,563,520 | 159,877,440 |
| Size | 658.6 MB | 152.5 MB |
| Events in quadrant A | 10,559,260 | 1,026,184 |
| Events in quadrant B | 4,767,202 | 1,075,971 |
| Events in quadrant C | 4,601,735 | 1,051,557 |
| Events in quadrant D | 4,832,786 | 970,230 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39017 | 1 |
| B | 0 | 21602 | 1 |
| C | 0 | 21594 | 1 |
| D | 0 | 22190 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 210 | 0 |
| B | 0 | 210 | 0 |
| C | 0 | 210 | 0 |
| D | 0 | 210 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10341 | 471 | 4.554685% |
| B | 10341 | 147 | 1.421526% |
| C | 10341 | 86 | 0.831641% |
| D | 10342 | 101 | 0.976600% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10656 | 10342 | 167 | 167 | 1.57% | 1.61% |  |
| B | 10656 | 10342 | 4 | 4 | 0.04% | 0.04% |  |
| C | 10656 | 10342 | 26 | 26 | 0.24% | 0.25% |  |
| D | 10657 | 10343 | 35 | 35 | 0.33% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5544524 | 23822.65 | 1110 | 1084 | 232.7 |
| A | 13 | 248 | 690979 | 2964.79 | 1110 | 1084 | 232.7 |
| A | 7 | 3 | 22352 | 91.4 | 1110 | 1084 | 232.7 |
| B | 0 | 200 | 143622 | 643.78 | 1118 | 1082 | 221.4 |
| B | 5 | 255 | 86480 | 385.7 | 1118 | 1082 | 221.4 |
| B | 12 | 111 | 29029 | 126.22 | 1118 | 1082 | 221.4 |
| C | 12 | 2 | 118265 | 447.85 | 1108 | 1112 | 261.6 |
| C | 14 | 254 | 111432 | 421.73 | 1108 | 1112 | 261.6 |
| C | 14 | 67 | 25728 | 94.1 | 1108 | 1112 | 261.6 |
| D | 13 | 29 | 212445 | 753.29 | 1113 | 1080 | 280.6 |
| D | 2 | 249 | 154352 | 546.25 | 1113 | 1080 | 280.6 |
| D | 2 | 234 | 54771 | 191.35 | 1113 | 1080 | 280.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

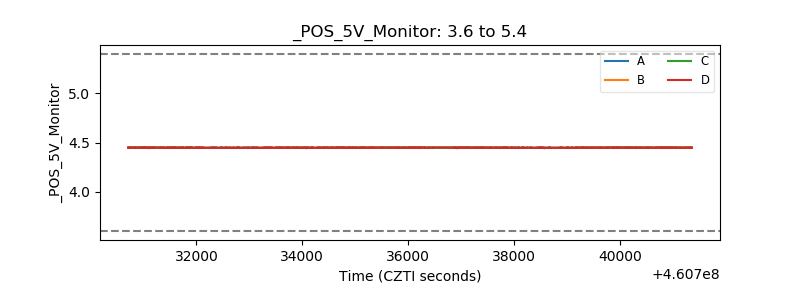

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
