| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T02_9000006380_47920cztM0_level2.fits | modeM0/AS1A13_025T02_9000006380_47920cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,050,560 | 102,424,320 |
| Size | 551.3 MB | 97.7 MB |
| Events in quadrant A | 8,573,297 | 626,427 |
| Events in quadrant B | 3,326,599 | 733,775 |
| Events in quadrant C | 3,087,540 | 704,323 |
| Events in quadrant D | 5,886,100 | 565,649 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30064 | 2 |
| B | 0 | 14523 | 2 |
| C | 0 | 14211 | 2 |
| D | 0 | 22346 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6757 | 1082 | 16.013024% |
| B | 6757 | 86 | 1.272754% |
| C | 6757 | 62 | 0.917567% |
| D | 6755 | 1011 | 14.966691% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7712 | 6758 | 688 | 688 | 8.92% | 10.18% |  |
| B | 7712 | 6758 | 29 | 29 | 0.38% | 0.43% |  |
| C | 7712 | 6758 | 34 | 34 | 0.44% | 0.50% |  |
| D | 7712 | 6757 | 860 | 860 | 11.15% | 12.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3954232 | 26694.13 | 711 | 695 | 148.1 |
| A | 13 | 248 | 1542320 | 10408.99 | 711 | 695 | 148.1 |
| A | 0 | 31 | 321140 | 2163.63 | 711 | 695 | 148.1 |
| B | 5 | 255 | 172450 | 1160.73 | 746 | 722 | 147.9 |
| B | 0 | 200 | 50689 | 337.73 | 746 | 722 | 147.9 |
| B | 4 | 171 | 47971 | 319.36 | 746 | 722 | 147.9 |
| C | 12 | 2 | 156634 | 901.79 | 734 | 738 | 172.9 |
| C | 14 | 254 | 50408 | 287.32 | 734 | 738 | 172.9 |
| C | 12 | 250 | 6624 | 34.05 | 734 | 738 | 172.9 |
| D | 2 | 37 | 2425410 | 13837.57 | 696 | 673 | 175.2 |
| D | 2 | 249 | 423136 | 2410.93 | 696 | 673 | 175.2 |
| D | 11 | 224 | 141492 | 803.63 | 696 | 673 | 175.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

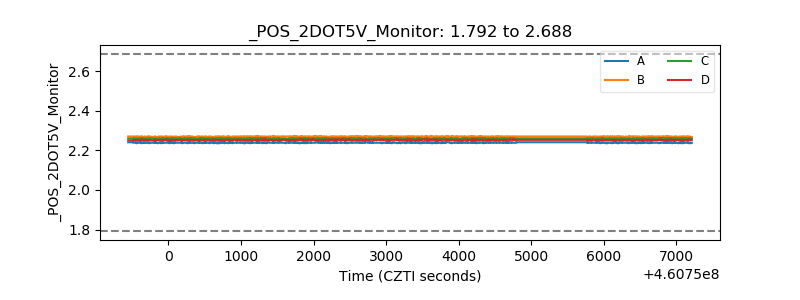

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
