| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T02_9000006380_47934cztM0_level2.fits | modeM0/AS1A13_025T02_9000006380_47934cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,080,321,920 | 440,383,680 |
| Size | 1.9 GB | 420.0 MB |
| Events in quadrant A | 29,861,407 | 2,847,205 |
| Events in quadrant B | 13,000,205 | 3,010,515 |
| Events in quadrant C | 12,497,033 | 2,943,486 |
| Events in quadrant D | 19,443,248 | 2,568,599 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108696 | 2 |
| B | 0 | 59111 | 2 |
| C | 0 | 59111 | 2 |
| D | 0 | 78722 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 574 | 0 |
| B | 0 | 574 | 0 |
| C | 0 | 574 | 0 |
| D | 0 | 574 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28553 | 1779 | 6.230519% |
| B | 28555 | 470 | 1.645946% |
| C | 28555 | 191 | 0.668885% |
| D | 28555 | 2058 | 7.207144% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31528 | 28556 | 748 | 748 | 2.37% | 2.62% |  |
| B | 31529 | 28558 | 9 | 9 | 0.03% | 0.03% |  |
| C | 31529 | 28558 | 22 | 22 | 0.07% | 0.08% |  |
| D | 31528 | 28557 | 1619 | 1619 | 5.14% | 5.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 15492049 | 23889.39 | 3114 | 3036 | 648.4 |
| A | 0 | 31 | 2092863 | 3223.23 | 3114 | 3036 | 648.4 |
| A | 13 | 248 | 149824 | 226.4 | 3114 | 3036 | 648.4 |
| B | 5 | 255 | 142593 | 225.04 | 3135 | 3031 | 620.2 |
| B | 7 | 221 | 91500 | 142.65 | 3135 | 3031 | 620.2 |
| B | 12 | 111 | 80677 | 125.2 | 3135 | 3031 | 620.2 |
| C | 12 | 2 | 104077 | 138.78 | 3107 | 3129 | 727.4 |
| C | 14 | 254 | 64070 | 83.78 | 3107 | 3129 | 727.4 |
| C | 1 | 3 | 55070 | 71.4 | 3107 | 3129 | 727.4 |
| D | 2 | 37 | 5851576 | 7638.81 | 3043 | 2945 | 765.6 |
| D | 15 | 217 | 815766 | 1061.61 | 3043 | 2945 | 765.6 |
| D | 14 | 34 | 289352 | 374.07 | 3043 | 2945 | 765.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

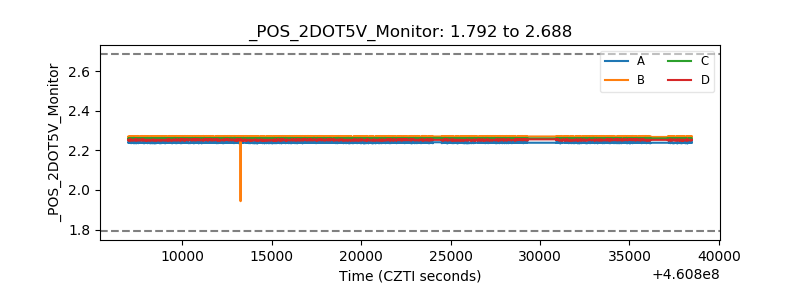

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
