| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47962cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47962cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,274,011,200 | 288,734,400 |
| Size | 1.2 GB | 275.4 MB |
| Events in quadrant A | 19,930,910 | 1,835,904 |
| Events in quadrant B | 8,655,143 | 1,962,952 |
| Events in quadrant C | 8,285,687 | 1,914,954 |
| Events in quadrant D | 8,843,570 | 1,739,787 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 73971 | 5 |
| B | 0 | 38727 | 2 |
| C | 0 | 38683 | 2 |
| D | 0 | 39862 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18682 | 976 | 5.224280% |
| B | 18683 | 434 | 2.322967% |
| C | 18683 | 190 | 1.016967% |
| D | 18683 | 307 | 1.643205% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19753 | 18683 | 234 | 234 | 1.18% | 1.25% |  |
| B | 19753 | 18683 | 5 | 5 | 0.03% | 0.03% |  |
| C | 19753 | 18683 | 8 | 8 | 0.04% | 0.04% |  |
| D | 19753 | 18683 | 84 | 84 | 0.43% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10636186 | 24581.7 | 2071 | 2027 | 432.6 |
| A | 0 | 31 | 917443 | 2116.06 | 2071 | 2027 | 432.6 |
| A | 14 | 235 | 357796 | 822.39 | 2071 | 2027 | 432.6 |
| B | 7 | 221 | 113756 | 268.65 | 2088 | 2020 | 415.9 |
| B | 0 | 198 | 97386 | 229.29 | 2088 | 2020 | 415.9 |
| B | 15 | 19 | 86100 | 202.16 | 2088 | 2020 | 415.9 |
| C | 14 | 254 | 120466 | 243.64 | 2065 | 2078 | 485.9 |
| C | 12 | 2 | 55630 | 110.21 | 2065 | 2078 | 485.9 |
| C | 12 | 250 | 20191 | 37.28 | 2065 | 2078 | 485.9 |
| D | 11 | 224 | 207793 | 397.78 | 2070 | 2003 | 517.3 |
| D | 2 | 37 | 170640 | 325.97 | 2070 | 2003 | 517.3 |
| D | 15 | 127 | 119149 | 226.44 | 2070 | 2003 | 517.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

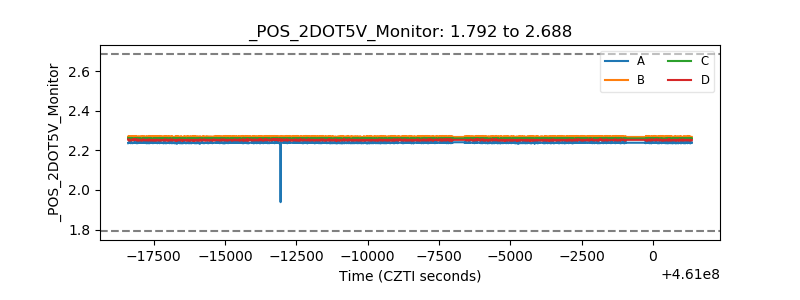

| +2.5 Volts monitor |  |

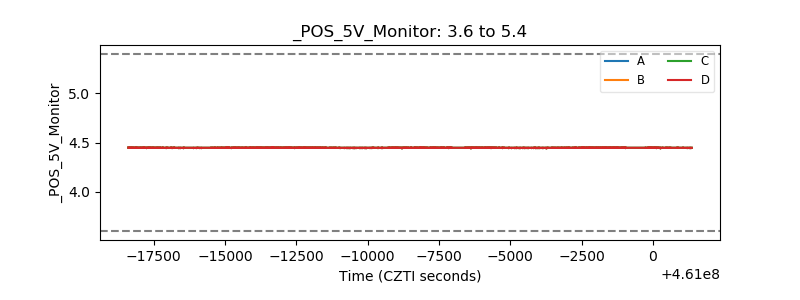

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
