| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47963cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47963cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,489,280 | 98,092,800 |
| Size | 425.8 MB | 93.5 MB |
| Events in quadrant A | 7,452,417 | 613,982 |
| Events in quadrant B | 2,941,013 | 672,715 |
| Events in quadrant C | 2,760,991 | 650,610 |
| Events in quadrant D | 2,885,228 | 594,131 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26774 | 1 |
| B | 0 | 13063 | 1 |
| C | 0 | 12934 | 1 |
| D | 0 | 13146 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6281 | 612 | 9.743671% |
| B | 6282 | 69 | 1.098376% |
| C | 6282 | 42 | 0.668577% |
| D | 6282 | 56 | 0.891436% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7150 | 6280 | 367 | 367 | 5.13% | 5.84% |  |
| B | 7152 | 6282 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7152 | 6282 | 11 | 11 | 0.15% | 0.18% |  |
| D | 7152 | 6282 | 12 | 12 | 0.17% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3733278 | 25904.15 | 677 | 660 | 144.1 |
| A | 0 | 31 | 1098234 | 7617.1 | 677 | 660 | 144.1 |
| A | 3 | 137 | 7933 | 50.47 | 677 | 660 | 144.1 |
| B | 0 | 200 | 60749 | 438.07 | 693 | 672 | 137.1 |
| B | 15 | 19 | 44757 | 321.46 | 693 | 672 | 137.1 |
| B | 0 | 197 | 27997 | 199.25 | 693 | 672 | 137.1 |
| C | 1 | 3 | 55118 | 337.33 | 682 | 684 | 161.4 |
| C | 12 | 2 | 18945 | 113.16 | 682 | 684 | 161.4 |
| C | 14 | 254 | 13724 | 80.81 | 682 | 684 | 161.4 |
| D | 2 | 165 | 36331 | 207.19 | 684 | 661 | 172.2 |
| D | 11 | 224 | 31454 | 178.86 | 684 | 661 | 172.2 |
| D | 2 | 234 | 31357 | 178.3 | 684 | 661 | 172.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

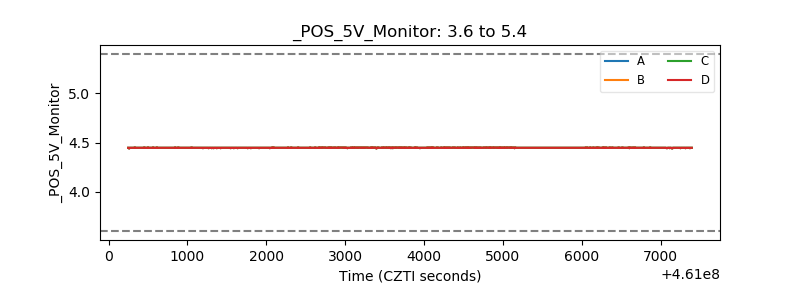

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
