| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47973cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47973cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,181,120 | 119,301,120 |
| Size | 459.8 MB | 113.8 MB |
| Events in quadrant A | 7,180,112 | 785,091 |
| Events in quadrant B | 3,215,673 | 814,064 |
| Events in quadrant C | 3,184,153 | 780,991 |
| Events in quadrant D | 3,683,256 | 707,375 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26558 | 0 |
| B | 0 | 15199 | 0 |
| C | 0 | 15277 | 0 |
| D | 0 | 16605 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7545 | 66 | 0.874751% |
| B | 7545 | 6 | 0.079523% |
| C | 7545 | 5 | 0.066269% |
| D | 7546 | 51 | 0.675855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 7545 | 28 | 28 | 0.37% | 0.37% |  |
| B | 7545 | 7545 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7545 | 7545 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7546 | 7546 | 47 | 47 | 0.62% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4003495 | 23789.7 | 805 | 787 | 168.3 |
| A | 0 | 31 | 63916 | 375.2 | 805 | 787 | 168.3 |
| A | 3 | 137 | 9433 | 51.39 | 805 | 787 | 168.3 |
| B | 12 | 111 | 20720 | 124.43 | 807 | 782 | 160.2 |
| B | 11 | 111 | 19261 | 115.32 | 807 | 782 | 160.2 |
| B | 14 | 111 | 18149 | 108.38 | 807 | 782 | 160.2 |
| C | 14 | 254 | 39869 | 205.51 | 800 | 803 | 190.1 |
| C | 12 | 2 | 18775 | 94.55 | 800 | 803 | 190.1 |
| C | 13 | 61 | 5314 | 23.73 | 800 | 803 | 190.1 |
| D | 2 | 249 | 355421 | 1763.19 | 797 | 774 | 201.1 |
| D | 11 | 224 | 210633 | 1043.35 | 797 | 774 | 201.1 |
| D | 14 | 34 | 41067 | 200.32 | 797 | 774 | 201.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

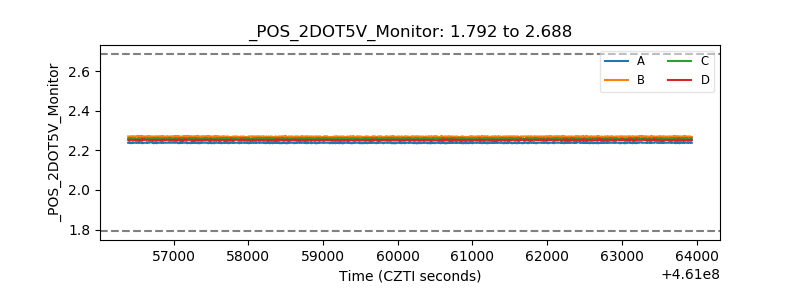

| +2.5 Volts monitor |  |

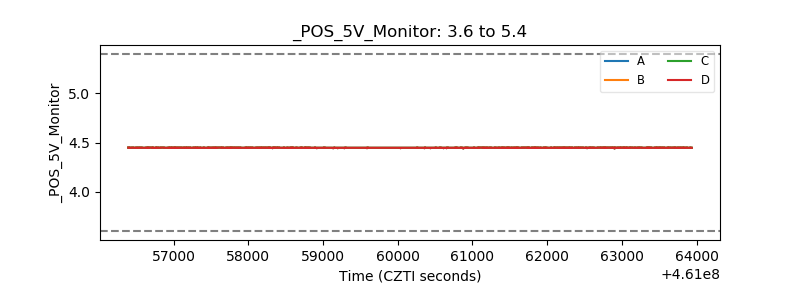

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
