| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47976cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47976cztM0_level2_quad_clean.evt |
| Size (bytes) | 741,228,480 | 158,711,040 |
| Size | 706.9 MB | 151.4 MB |
| Events in quadrant A | 10,091,546 | 1,039,272 |
| Events in quadrant B | 4,710,929 | 1,074,630 |
| Events in quadrant C | 6,124,654 | 1,019,272 |
| Events in quadrant D | 5,695,572 | 943,741 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 210 | 0 |
| B | 0 | 210 | 0 |
| C | 0 | 210 | 0 |
| D | 0 | 210 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37934 | 1 |
| B | 0 | 21786 | 1 |
| C | 0 | 26182 | 1 |
| D | 0 | 24938 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10522 | 418 | 3.972629% |
| B | 10523 | 362 | 3.440084% |
| C | 10523 | 567 | 5.388197% |
| D | 10523 | 488 | 4.637461% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10562 | 10522 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10563 | 10523 | 11 | 11 | 0.10% | 0.10% |  |
| C | 10563 | 10523 | 169 | 169 | 1.60% | 1.61% |  |
| D | 10563 | 10523 | 190 | 190 | 1.80% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5669879 | 23765.42 | 1141 | 1114 | 238.5 |
| A | 0 | 31 | 17692 | 69.5 | 1141 | 1114 | 238.5 |
| A | 3 | 137 | 13819 | 53.26 | 1141 | 1114 | 238.5 |
| B | 7 | 221 | 42692 | 182.3 | 1144 | 1105 | 228.1 |
| B | 0 | 183 | 40537 | 172.85 | 1144 | 1105 | 228.1 |
| B | 12 | 0 | 37606 | 160.0 | 1144 | 1105 | 228.1 |
| C | 15 | 208 | 1426599 | 5389.78 | 1118 | 1124 | 264.5 |
| C | 14 | 254 | 273071 | 1028.24 | 1118 | 1124 | 264.5 |
| C | 12 | 2 | 40782 | 149.95 | 1118 | 1124 | 264.5 |
| D | 2 | 249 | 976231 | 3429.07 | 1131 | 1092 | 284.4 |
| D | 11 | 224 | 164118 | 573.28 | 1131 | 1092 | 284.4 |
| D | 5 | 32 | 82056 | 284.71 | 1131 | 1092 | 284.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

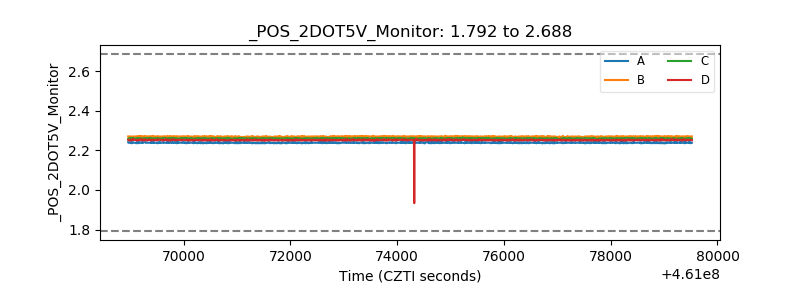

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
