| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47977cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47977cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,882,560 | 133,035,840 |
| Size | 565.4 MB | 126.9 MB |
| Events in quadrant A | 8,738,237 | 866,556 |
| Events in quadrant B | 4,033,797 | 897,943 |
| Events in quadrant C | 4,048,029 | 872,478 |
| Events in quadrant D | 4,460,100 | 794,039 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 176 | 0 |
| B | 0 | 176 | 0 |
| C | 0 | 176 | 0 |
| D | 0 | 176 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32290 | 2 |
| B | 0 | 18127 | 2 |
| C | 0 | 18455 | 2 |
| D | 0 | 19799 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8594 | 393 | 4.572958% |
| B | 8594 | 259 | 3.013731% |
| C | 8594 | 183 | 2.129393% |
| D | 8595 | 296 | 3.443863% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9809 | 8594 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9809 | 8594 | 21 | 21 | 0.21% | 0.24% |  |
| C | 9809 | 8594 | 29 | 29 | 0.30% | 0.34% |  |
| D | 9810 | 8595 | 138 | 138 | 1.41% | 1.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4991142 | 25133.8 | 948 | 927 | 198.5 |
| A | 0 | 31 | 77507 | 385.7 | 948 | 927 | 198.5 |
| A | 3 | 137 | 11454 | 53.02 | 948 | 927 | 198.5 |
| B | 5 | 32 | 58968 | 302.98 | 953 | 921 | 191.6 |
| B | 7 | 221 | 56251 | 288.8 | 953 | 921 | 191.6 |
| B | 5 | 255 | 48706 | 249.42 | 953 | 921 | 191.6 |
| C | 14 | 254 | 300691 | 1337.13 | 945 | 949 | 224.2 |
| C | 12 | 2 | 38481 | 167.43 | 945 | 949 | 224.2 |
| C | 1 | 3 | 15647 | 65.57 | 945 | 949 | 224.2 |
| D | 2 | 249 | 562089 | 2383.77 | 943 | 914 | 235.4 |
| D | 11 | 224 | 131680 | 555.47 | 943 | 914 | 235.4 |
| D | 7 | 204 | 80932 | 339.9 | 943 | 914 | 235.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

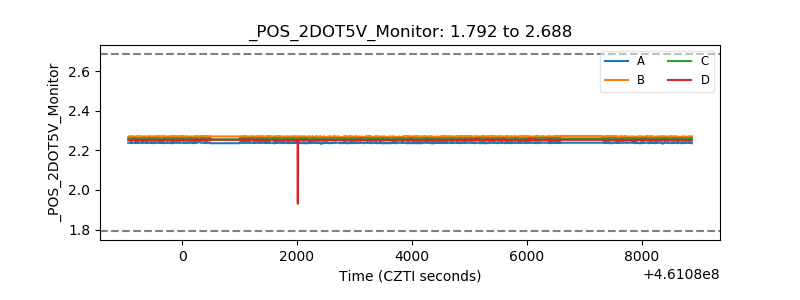

| +2.5 Volts monitor |  |

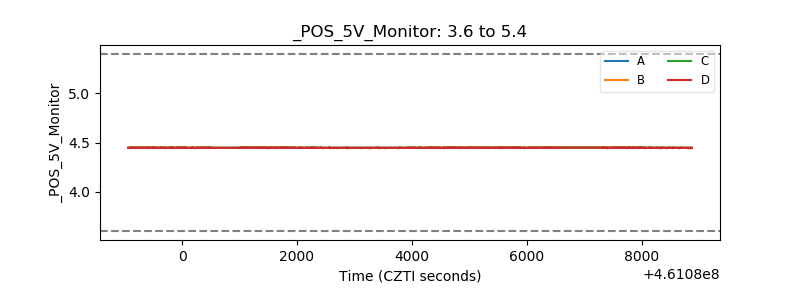

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
