| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47980cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47980cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,093,120 | 98,930,880 |
| Size | 440.7 MB | 94.3 MB |
| Events in quadrant A | 7,586,914 | 590,820 |
| Events in quadrant B | 2,964,623 | 699,465 |
| Events in quadrant C | 2,982,785 | 664,931 |
| Events in quadrant D | 3,085,136 | 604,251 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26529 | 1 |
| B | 0 | 13237 | 1 |
| C | 0 | 13483 | 1 |
| D | 0 | 13900 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6249 | 952 | 15.234438% |
| B | 6250 | 73 | 1.168000% |
| C | 6250 | 64 | 1.024000% |
| D | 6249 | 133 | 2.128341% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7388 | 6248 | 752 | 752 | 10.18% | 12.04% |  |
| B | 7390 | 6250 | 33 | 33 | 0.45% | 0.53% |  |
| C | 7390 | 6251 | 56 | 56 | 0.76% | 0.90% |  |
| D | 7389 | 6250 | 100 | 100 | 1.35% | 1.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3755081 | 26910.86 | 669 | 655 | 139.5 |
| A | 0 | 31 | 1216866 | 8717.52 | 669 | 655 | 139.5 |
| A | 10 | 255 | 15557 | 106.81 | 669 | 655 | 139.5 |
| B | 5 | 32 | 139003 | 1032.0 | 687 | 667 | 134.0 |
| B | 0 | 197 | 35840 | 262.39 | 687 | 667 | 134.0 |
| B | 7 | 221 | 27790 | 202.34 | 687 | 667 | 134.0 |
| C | 14 | 254 | 308095 | 1935.2 | 674 | 677 | 158.9 |
| C | 12 | 2 | 22257 | 135.85 | 674 | 677 | 158.9 |
| C | 0 | 207 | 13310 | 79.53 | 674 | 677 | 158.9 |
| D | 2 | 249 | 365273 | 2168.27 | 671 | 649 | 168.2 |
| D | 11 | 224 | 44180 | 258.86 | 671 | 649 | 168.2 |
| D | 2 | 37 | 37270 | 217.77 | 671 | 649 | 168.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

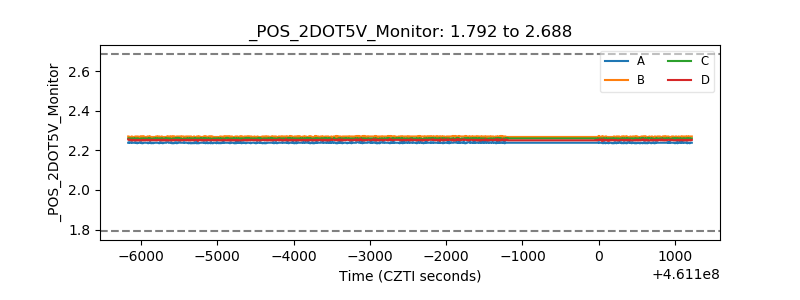

| +2.5 Volts monitor |  |

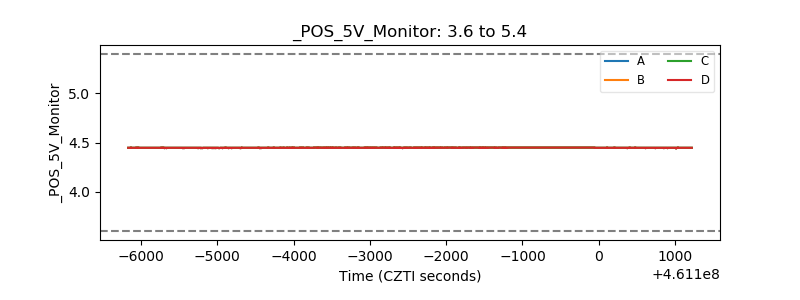

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
