| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47988cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47988cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,624,320 | 135,766,080 |
| Size | 473.6 MB | 129.5 MB |
| Events in quadrant A | 7,424,823 | 929,839 |
| Events in quadrant B | 3,373,047 | 929,411 |
| Events in quadrant C | 3,432,686 | 907,391 |
| Events in quadrant D | 3,589,876 | 839,198 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27156 | 0 |
| B | 0 | 15276 | 0 |
| C | 0 | 15647 | 0 |
| D | 0 | 16255 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7257 | 119 | 1.639796% |
| B | 7258 | 10 | 0.137779% |
| C | 7258 | 21 | 0.289336% |
| D | 7258 | 75 | 1.033343% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7257 | 7257 | 58 | 58 | 0.80% | 0.80% |  |
| B | 7258 | 7258 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7258 | 7258 | 15 | 15 | 0.21% | 0.21% |  |
| D | 7258 | 7258 | 77 | 77 | 1.06% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3916739 | 22435.36 | 838 | 823 | 174.5 |
| A | 14 | 248 | 263205 | 1503.26 | 838 | 823 | 174.5 |
| A | 13 | 254 | 10124 | 53.29 | 838 | 823 | 174.5 |
| B | 5 | 255 | 54260 | 323.5 | 828 | 803 | 165.2 |
| B | 7 | 221 | 26541 | 155.76 | 828 | 803 | 165.2 |
| B | 12 | 111 | 19655 | 114.08 | 828 | 803 | 165.2 |
| C | 12 | 2 | 75701 | 379.48 | 824 | 831 | 197.3 |
| C | 15 | 208 | 59597 | 297.85 | 824 | 831 | 197.3 |
| C | 14 | 254 | 47677 | 237.44 | 824 | 831 | 197.3 |
| D | 11 | 224 | 122340 | 581.95 | 827 | 803 | 208.8 |
| D | 2 | 249 | 118919 | 565.57 | 827 | 803 | 208.8 |
| D | 13 | 29 | 68503 | 324.17 | 827 | 803 | 208.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

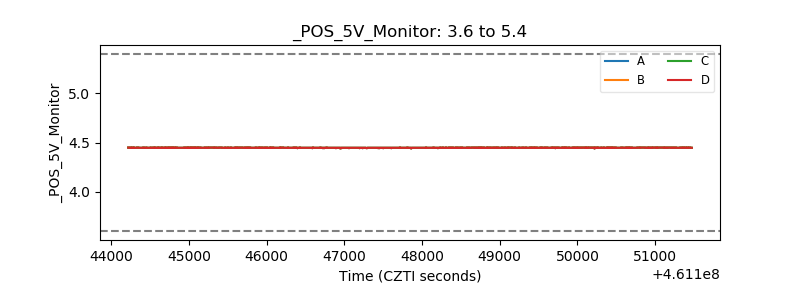

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
