| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47994cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47994cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,475,840 | 111,781,440 |
| Size | 454.4 MB | 106.6 MB |
| Events in quadrant A | 7,206,266 | 722,091 |
| Events in quadrant B | 3,107,402 | 766,102 |
| Events in quadrant C | 3,155,900 | 748,179 |
| Events in quadrant D | 3,652,158 | 684,845 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25854 | 2 |
| B | 0 | 13945 | 2 |
| C | 0 | 14215 | 2 |
| D | 0 | 15722 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6650 | 342 | 5.142857% |
| B | 6650 | 79 | 1.187970% |
| C | 6649 | 40 | 0.601594% |
| D | 6649 | 142 | 2.135659% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7640 | 6651 | 61 | 61 | 0.80% | 0.92% |  |
| B | 7640 | 6651 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7639 | 6650 | 18 | 18 | 0.24% | 0.27% |  |
| D | 7639 | 6650 | 92 | 92 | 1.20% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4165535 | 26553.24 | 755 | 740 | 156.8 |
| A | 14 | 248 | 101761 | 644.07 | 755 | 740 | 156.8 |
| A | 10 | 15 | 9089 | 53.23 | 755 | 740 | 156.8 |
| B | 7 | 221 | 67582 | 445.22 | 759 | 737 | 150.1 |
| B | 0 | 197 | 20516 | 131.74 | 759 | 737 | 150.1 |
| B | 12 | 111 | 19047 | 121.95 | 759 | 737 | 150.1 |
| C | 14 | 254 | 120239 | 677.52 | 748 | 753 | 176.4 |
| C | 15 | 208 | 76349 | 428.65 | 748 | 753 | 176.4 |
| C | 12 | 2 | 16616 | 89.95 | 748 | 753 | 176.4 |
| D | 2 | 249 | 294152 | 1559.35 | 749 | 726 | 188.2 |
| D | 11 | 192 | 161934 | 856.7 | 749 | 726 | 188.2 |
| D | 5 | 222 | 97530 | 514.44 | 749 | 726 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

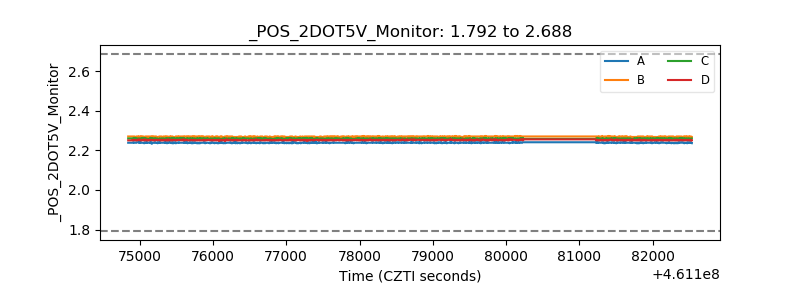

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
