| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_47997cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_47997cztM0_level2_quad_clean.evt |
| Size (bytes) | 317,905,920 | 75,234,240 |
| Size | 303.2 MB | 71.7 MB |
| Events in quadrant A | 4,597,289 | 441,691 |
| Events in quadrant B | 2,248,612 | 534,689 |
| Events in quadrant C | 2,320,476 | 513,072 |
| Events in quadrant D | 2,244,767 | 464,890 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 14 |
| B | 0 | 119 | 15 |
| C | 0 | 118 | 12 |
| D | 0 | 120 | 12 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20974 | 4380 |
| B | 0 | 11312 | 1497 |
| C | 0 | 11643 | 1579 |
| D | 0 | 11429 | 1442 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4286 | 321 | 7.489501% |
| B | 4647 | 78 | 1.678502% |
| C | 4647 | 60 | 1.291156% |
| D | 4657 | 55 | 1.181018% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 4818 | 65 | 65 | 0.86% | 1.35% |  |
| B | 7576 | 5152 | 8 | 8 | 0.11% | 0.16% |  |
| C | 7576 | 5149 | 13 | 13 | 0.17% | 0.25% |  |
| D | 7576 | 5155 | 22 | 22 | 0.29% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2669671 | 25869.79 | 493 | 483 | 103.2 |
| A | 7 | 3 | 12753 | 118.92 | 493 | 483 | 103.2 |
| A | 14 | 248 | 6478 | 58.1 | 493 | 483 | 103.2 |
| B | 0 | 197 | 16058 | 142.99 | 547 | 529 | 108.6 |
| B | 0 | 198 | 14609 | 129.65 | 547 | 529 | 108.6 |
| B | 12 | 111 | 13579 | 120.17 | 547 | 529 | 108.6 |
| C | 14 | 254 | 141762 | 1097.93 | 541 | 544 | 128.6 |
| C | 12 | 250 | 23562 | 178.96 | 541 | 544 | 128.6 |
| C | 12 | 2 | 19975 | 151.07 | 541 | 544 | 128.6 |
| D | 2 | 249 | 70500 | 525.03 | 539 | 525 | 133.3 |
| D | 11 | 224 | 48588 | 360.62 | 539 | 525 | 133.3 |
| D | 8 | 176 | 23940 | 175.69 | 539 | 525 | 133.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

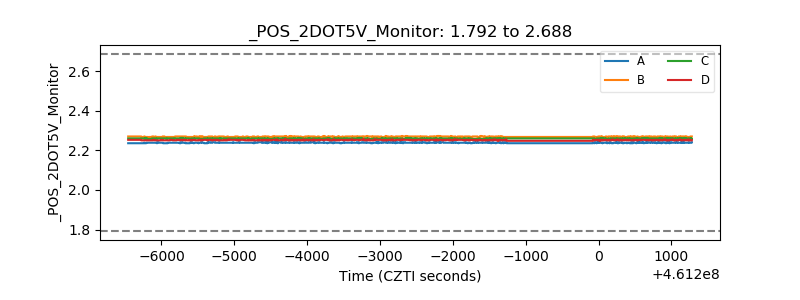

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
