| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_062T02_9000006384_48006cztM0_level2.fits | modeM0/AS1A13_062T02_9000006384_48006cztM0_level2_quad_clean.evt |
| Size (bytes) | 691,047,360 | 156,908,160 |
| Size | 659.0 MB | 149.6 MB |
| Events in quadrant A | 10,309,756 | 1,014,456 |
| Events in quadrant B | 4,646,502 | 1,054,687 |
| Events in quadrant C | 4,977,120 | 1,034,839 |
| Events in quadrant D | 4,855,048 | 938,408 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 206 | 0 |
| B | 0 | 206 | 0 |
| C | 0 | 206 | 0 |
| D | 0 | 206 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39167 | 1 |
| B | 0 | 21327 | 1 |
| C | 0 | 22087 | 1 |
| D | 0 | 22146 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10218 | 444 | 4.345273% |
| B | 10218 | 318 | 3.112155% |
| C | 10219 | 208 | 2.035424% |
| D | 10219 | 269 | 2.632352% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10238 | 10219 | 42 | 42 | 0.41% | 0.41% |  |
| B | 10238 | 10219 | 16 | 16 | 0.16% | 0.16% |  |
| C | 10239 | 10220 | 23 | 23 | 0.22% | 0.23% |  |
| D | 10239 | 10220 | 51 | 51 | 0.50% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5824285 | 24550.04 | 1118 | 1092 | 237.2 |
| A | 0 | 31 | 133231 | 557.08 | 1118 | 1092 | 237.2 |
| A | 7 | 3 | 26220 | 105.94 | 1118 | 1092 | 237.2 |
| B | 7 | 221 | 104971 | 467.78 | 1117 | 1080 | 222.1 |
| B | 5 | 32 | 61486 | 271.98 | 1117 | 1080 | 222.1 |
| B | 12 | 111 | 28370 | 122.88 | 1117 | 1080 | 222.1 |
| C | 12 | 250 | 258833 | 987.0 | 1108 | 1115 | 261.1 |
| C | 14 | 254 | 120125 | 455.78 | 1108 | 1115 | 261.1 |
| C | 14 | 67 | 106957 | 405.35 | 1108 | 1115 | 261.1 |
| D | 2 | 249 | 156679 | 561.71 | 1108 | 1071 | 277.0 |
| D | 11 | 224 | 150738 | 540.27 | 1108 | 1071 | 277.0 |
| D | 2 | 234 | 53499 | 189.25 | 1108 | 1071 | 277.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

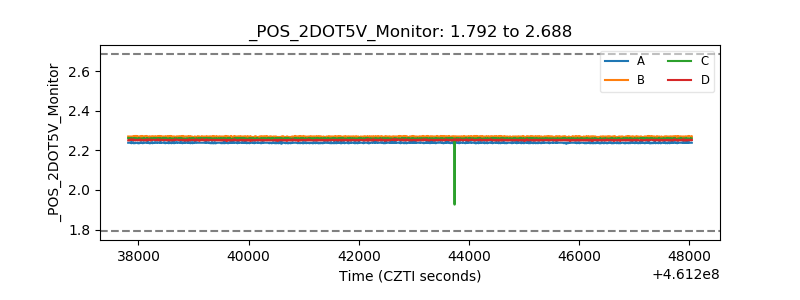

| +2.5 Volts monitor |  |

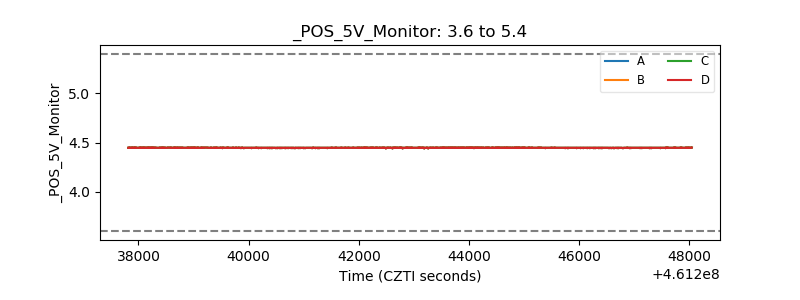

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
