| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_218T01_9000006386_48006cztM0_level2.fits | modeM0/AS1T05_218T01_9000006386_48006cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,923,200 | 118,679,040 |
| Size | 509.2 MB | 113.2 MB |
| Events in quadrant A | 7,865,738 | 772,471 |
| Events in quadrant B | 3,536,417 | 805,454 |
| Events in quadrant C | 3,631,087 | 780,793 |
| Events in quadrant D | 4,146,479 | 710,506 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29072 | 2 |
| B | 0 | 15641 | 2 |
| C | 0 | 16282 | 2 |
| D | 0 | 17673 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7533 | 400 | 5.309969% |
| B | 7533 | 186 | 2.469136% |
| C | 7533 | 144 | 1.911589% |
| D | 7533 | 254 | 3.371831% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8653 | 7535 | 12 | 12 | 0.14% | 0.16% |  |
| B | 8653 | 7534 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8653 | 7534 | 32 | 32 | 0.37% | 0.42% |  |
| D | 8653 | 7534 | 116 | 116 | 1.34% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4570990 | 25996.89 | 844 | 826 | 175.8 |
| A | 13 | 254 | 10924 | 57.44 | 844 | 826 | 175.8 |
| A | 7 | 3 | 10141 | 52.99 | 844 | 826 | 175.8 |
| B | 0 | 198 | 94186 | 556.71 | 845 | 819 | 167.7 |
| B | 7 | 221 | 35208 | 205.05 | 845 | 819 | 167.7 |
| B | 12 | 111 | 21948 | 125.98 | 845 | 819 | 167.7 |
| C | 12 | 2 | 176310 | 888.13 | 831 | 831 | 197.6 |
| C | 14 | 254 | 80298 | 402.2 | 831 | 831 | 197.6 |
| C | 15 | 208 | 63472 | 317.04 | 831 | 831 | 197.6 |
| D | 2 | 37 | 445640 | 2126.19 | 834 | 807 | 209.2 |
| D | 2 | 120 | 148965 | 708.16 | 834 | 807 | 209.2 |
| D | 2 | 249 | 63582 | 300.05 | 834 | 807 | 209.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

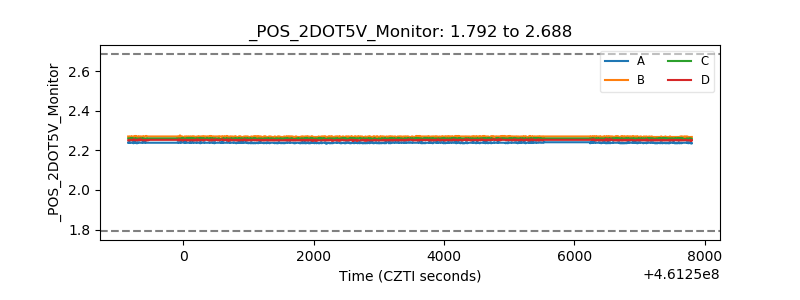

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
