| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006388_48024cztM0_level2.fits | modeM0/AS1A13_053T01_9000006388_48024cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,103,680 | 105,615,360 |
| Size | 455.0 MB | 100.7 MB |
| Events in quadrant A | 7,121,705 | 678,902 |
| Events in quadrant B | 3,267,385 | 732,729 |
| Events in quadrant C | 3,251,209 | 699,735 |
| Events in quadrant D | 3,517,869 | 634,727 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25611 | 4 |
| B | 0 | 14443 | 2 |
| C | 0 | 14363 | 2 |
| D | 0 | 15379 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6477 | 427 | 6.592558% |
| B | 6477 | 89 | 1.374093% |
| C | 6477 | 105 | 1.621121% |
| D | 6477 | 198 | 3.056971% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6478 | 117 | 117 | 1.55% | 1.81% |  |
| B | 7572 | 6478 | 19 | 19 | 0.25% | 0.29% |  |
| C | 7572 | 6478 | 68 | 68 | 0.90% | 1.05% |  |
| D | 7572 | 6478 | 128 | 128 | 1.69% | 1.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4235634 | 28895.75 | 707 | 691 | 146.6 |
| A | 13 | 248 | 126895 | 861.11 | 707 | 691 | 146.6 |
| A | 7 | 3 | 21256 | 140.32 | 707 | 691 | 146.6 |
| B | 0 | 200 | 224679 | 1584.29 | 719 | 699 | 141.4 |
| B | 7 | 221 | 53908 | 376.37 | 719 | 699 | 141.4 |
| B | 0 | 198 | 48147 | 335.62 | 719 | 699 | 141.4 |
| C | 12 | 2 | 342066 | 2092.25 | 700 | 703 | 163.2 |
| C | 10 | 20 | 74720 | 453.66 | 700 | 703 | 163.2 |
| C | 15 | 208 | 36904 | 221.88 | 700 | 703 | 163.2 |
| D | 2 | 249 | 496026 | 2848.95 | 694 | 671 | 173.9 |
| D | 12 | 2 | 88006 | 502.29 | 694 | 671 | 173.9 |
| D | 11 | 192 | 54464 | 309.38 | 694 | 671 | 173.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

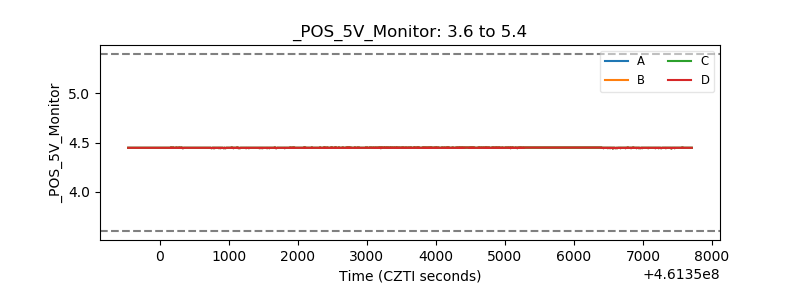

| +2.5 Volts monitor |  |

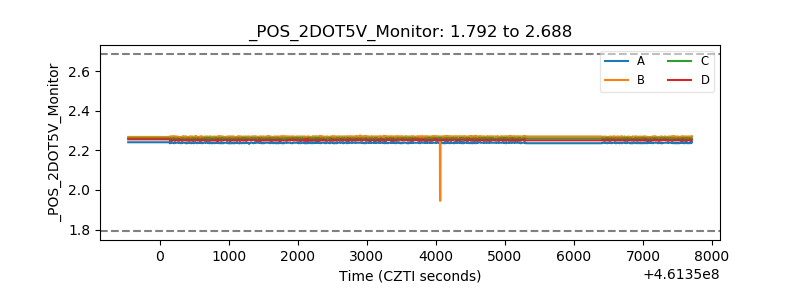

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
