| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006388_48035cztM0_level2.fits | modeM0/AS1A13_053T01_9000006388_48035cztM0_level2_quad_clean.evt |
| Size (bytes) | 987,212,160 | 236,525,760 |
| Size | 941.5 MB | 225.6 MB |
| Events in quadrant A | 14,345,646 | 1,544,601 |
| Events in quadrant B | 6,615,678 | 1,595,311 |
| Events in quadrant C | 6,542,325 | 1,556,614 |
| Events in quadrant D | 7,866,690 | 1,418,432 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 302 | 0 |
| B | 0 | 302 | 0 |
| C | 0 | 302 | 0 |
| D | 0 | 302 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53413 | 3 |
| B | 0 | 31117 | 0 |
| C | 0 | 31140 | 0 |
| D | 0 | 34843 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15165 | 188 | 1.239697% |
| B | 15166 | 77 | 0.507715% |
| C | 15166 | 24 | 0.158249% |
| D | 15166 | 148 | 0.975867% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15165 | 15165 | 6 | 6 | 0.04% | 0.04% |  |
| B | 15166 | 15166 | 9 | 9 | 0.06% | 0.06% |  |
| C | 15166 | 15166 | 5 | 5 | 0.03% | 0.03% |  |
| D | 15166 | 15166 | 127 | 127 | 0.84% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8066770 | 24131.87 | 1611 | 1575 | 334.2 |
| A | 13 | 254 | 27219 | 76.73 | 1611 | 1575 | 334.2 |
| A | 0 | 31 | 26201 | 73.68 | 1611 | 1575 | 334.2 |
| B | 7 | 221 | 116945 | 362.47 | 1613 | 1559 | 318.3 |
| B | 0 | 198 | 53764 | 163.99 | 1613 | 1559 | 318.3 |
| B | 12 | 111 | 41092 | 124.19 | 1613 | 1559 | 318.3 |
| C | 0 | 207 | 156035 | 411.74 | 1606 | 1613 | 375.1 |
| C | 3 | 233 | 50955 | 131.56 | 1606 | 1613 | 375.1 |
| C | 14 | 67 | 38103 | 97.29 | 1606 | 1613 | 375.1 |
| D | 2 | 165 | 697428 | 1744.43 | 1600 | 1552 | 398.9 |
| D | 11 | 224 | 282089 | 703.25 | 1600 | 1552 | 398.9 |
| D | 2 | 249 | 270750 | 674.83 | 1600 | 1552 | 398.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

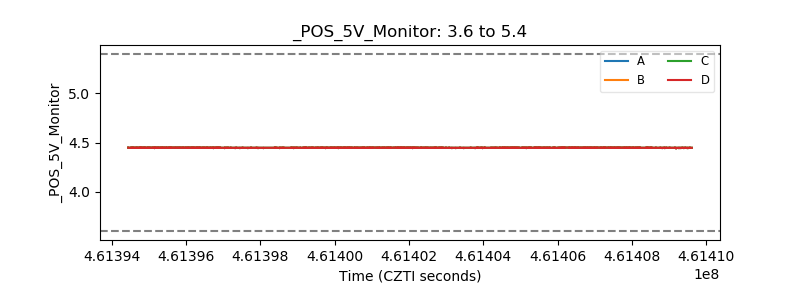

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
