| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006392_48044cztM0_level2.fits | modeM0/AS1A13_037T05_9000006392_48044cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,277,440 | 120,732,480 |
| Size | 518.1 MB | 115.1 MB |
| Events in quadrant A | 7,904,591 | 783,500 |
| Events in quadrant B | 3,599,129 | 835,387 |
| Events in quadrant C | 3,542,259 | 793,976 |
| Events in quadrant D | 4,472,521 | 711,799 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28746 | 2 |
| B | 0 | 16087 | 2 |
| C | 0 | 16276 | 2 |
| D | 0 | 18833 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7633 | 357 | 4.677060% |
| B | 7633 | 139 | 1.821040% |
| C | 7633 | 94 | 1.231495% |
| D | 7633 | 231 | 3.026333% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7998 | 7634 | 40 | 40 | 0.50% | 0.52% |  |
| B | 7998 | 7634 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7998 | 7634 | 16 | 16 | 0.20% | 0.21% |  |
| D | 7998 | 7634 | 140 | 140 | 1.75% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4554005 | 25295.61 | 852 | 832 | 180.0 |
| A | 0 | 243 | 22940 | 122.82 | 852 | 832 | 180.0 |
| A | 7 | 3 | 17376 | 91.91 | 852 | 832 | 180.0 |
| B | 5 | 255 | 48689 | 273.46 | 868 | 839 | 175.0 |
| B | 7 | 221 | 44963 | 252.17 | 868 | 839 | 175.0 |
| B | 10 | 245 | 26878 | 148.81 | 868 | 839 | 175.0 |
| C | 12 | 249 | 145883 | 713.25 | 855 | 857 | 203.3 |
| C | 5 | 37 | 24681 | 117.17 | 855 | 857 | 203.3 |
| C | 14 | 67 | 14398 | 66.6 | 855 | 857 | 203.3 |
| D | 2 | 165 | 318502 | 1493.26 | 840 | 814 | 212.7 |
| D | 2 | 249 | 302689 | 1418.93 | 840 | 814 | 212.7 |
| D | 11 | 192 | 127967 | 597.67 | 840 | 814 | 212.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

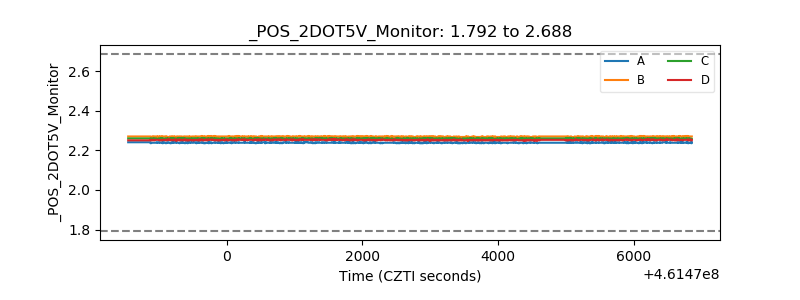

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
