| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006392_48049cztM0_level2.fits | modeM0/AS1A13_037T05_9000006392_48049cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,441,872,000 | 312,635,520 |
| Size | 1.3 GB | 298.2 MB |
| Events in quadrant A | 21,019,201 | 1,980,058 |
| Events in quadrant B | 9,908,355 | 2,156,558 |
| Events in quadrant C | 9,538,350 | 2,083,686 |
| Events in quadrant D | 11,351,564 | 1,858,258 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78706 | 2 |
| B | 0 | 43360 | 2 |
| C | 0 | 43088 | 2 |
| D | 0 | 47876 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 408 | 0 |
| B | 0 | 408 | 0 |
| C | 0 | 408 | 0 |
| D | 0 | 408 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20136 | 1408 | 6.992451% |
| B | 20137 | 516 | 2.562447% |
| C | 20137 | 368 | 1.827482% |
| D | 20137 | 646 | 3.208025% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21066 | 20139 | 400 | 400 | 1.90% | 1.99% |  |
| B | 21067 | 20140 | 49 | 49 | 0.23% | 0.24% |  |
| C | 21067 | 20140 | 96 | 96 | 0.46% | 0.48% |  |
| D | 21067 | 20140 | 273 | 273 | 1.30% | 1.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11169668 | 23968.08 | 2240 | 2192 | 465.9 |
| A | 14 | 248 | 1133933 | 2428.99 | 2240 | 2192 | 465.9 |
| A | 13 | 254 | 35454 | 71.39 | 2240 | 2192 | 465.9 |
| B | 7 | 221 | 298592 | 653.39 | 2283 | 2213 | 453.6 |
| B | 0 | 200 | 260233 | 568.82 | 2283 | 2213 | 453.6 |
| B | 5 | 255 | 151407 | 328.91 | 2283 | 2213 | 453.6 |
| C | 12 | 2 | 411326 | 770.79 | 2254 | 2265 | 530.7 |
| C | 15 | 208 | 173544 | 322.74 | 2254 | 2265 | 530.7 |
| C | 14 | 254 | 85745 | 157.3 | 2254 | 2265 | 530.7 |
| D | 2 | 249 | 862484 | 1527.27 | 2235 | 2155 | 563.3 |
| D | 11 | 224 | 598056 | 1057.85 | 2235 | 2155 | 563.3 |
| D | 2 | 165 | 331325 | 584.35 | 2235 | 2155 | 563.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

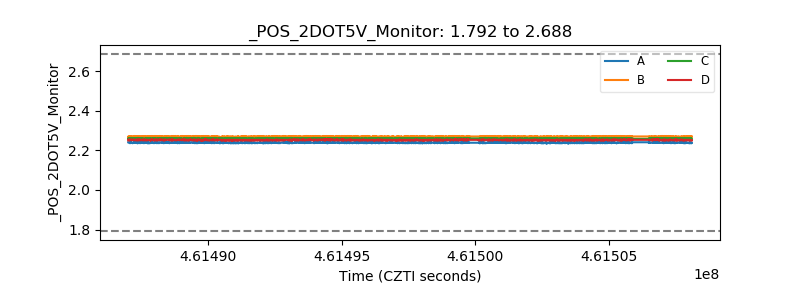

| +2.5 Volts monitor |  |

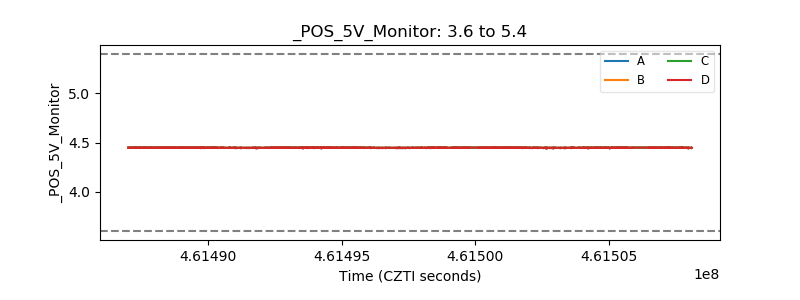

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
