| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006392_48050cztM0_level2.fits | modeM0/AS1A13_037T05_9000006392_48050cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,387,200 | 100,192,320 |
| Size | 479.1 MB | 95.6 MB |
| Events in quadrant A | 6,802,166 | 677,138 |
| Events in quadrant B | 3,776,303 | 663,952 |
| Events in quadrant C | 2,874,581 | 674,407 |
| Events in quadrant D | 4,643,974 | 568,604 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25032 | 1 |
| B | 0 | 15616 | 1 |
| C | 0 | 13295 | 1 |
| D | 0 | 18533 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6440 | 215 | 3.338509% |
| B | 6440 | 391 | 6.071429% |
| C | 6441 | 62 | 0.962583% |
| D | 6440 | 596 | 9.254658% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7230 | 6441 | 13 | 13 | 0.18% | 0.20% |  |
| B | 7230 | 6441 | 248 | 248 | 3.43% | 3.85% |  |
| C | 7231 | 6442 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7230 | 6441 | 384 | 384 | 5.31% | 5.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4012247 | 26493.98 | 715 | 697 | 151.4 |
| A | 0 | 243 | 18485 | 117.48 | 715 | 697 | 151.4 |
| A | 13 | 254 | 10935 | 67.62 | 715 | 697 | 151.4 |
| B | 5 | 32 | 508748 | 3725.6 | 682 | 659 | 136.4 |
| B | 4 | 171 | 221352 | 1618.25 | 682 | 659 | 136.4 |
| B | 0 | 200 | 103911 | 757.1 | 682 | 659 | 136.4 |
| C | 12 | 2 | 60406 | 360.18 | 700 | 703 | 165.8 |
| C | 14 | 254 | 26309 | 154.48 | 700 | 703 | 165.8 |
| C | 12 | 250 | 21287 | 124.18 | 700 | 703 | 165.8 |
| D | 2 | 165 | 1475422 | 8483.54 | 681 | 658 | 173.8 |
| D | 2 | 249 | 311354 | 1787.27 | 681 | 658 | 173.8 |
| D | 12 | 128 | 52498 | 298.21 | 681 | 658 | 173.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

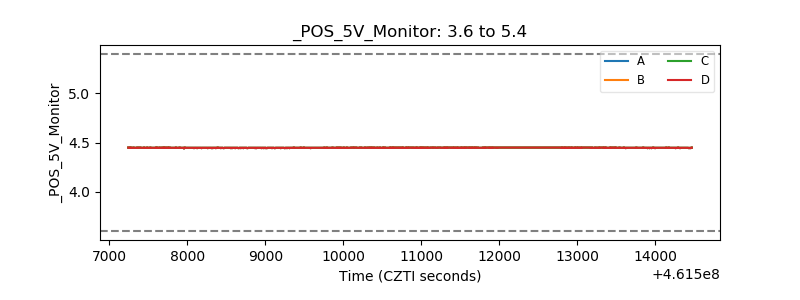

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
