| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_217T01_9000006390_48041cztM0_level2.fits | modeM0/AS1T05_217T01_9000006390_48041cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,275,520 | 98,801,280 |
| Size | 400.8 MB | 94.2 MB |
| Events in quadrant A | 6,274,686 | 647,922 |
| Events in quadrant B | 3,334,185 | 658,912 |
| Events in quadrant C | 2,559,042 | 666,704 |
| Events in quadrant D | 2,930,714 | 605,449 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22618 | 2 |
| B | 0 | 14101 | 2 |
| C | 0 | 12012 | 2 |
| D | 0 | 13024 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5899 | 338 | 5.729785% |
| B | 5899 | 344 | 5.831497% |
| C | 5899 | 10 | 0.169520% |
| D | 5899 | 42 | 0.711985% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7114 | 5900 | 139 | 139 | 1.95% | 2.36% |  |
| B | 7114 | 5900 | 283 | 283 | 3.98% | 4.80% |  |
| C | 7114 | 5900 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7114 | 5900 | 24 | 24 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3750242 | 28138.65 | 646 | 633 | 133.3 |
| A | 0 | 243 | 15096 | 108.54 | 646 | 633 | 133.3 |
| A | 13 | 254 | 11392 | 80.74 | 646 | 633 | 133.3 |
| B | 5 | 32 | 745494 | 6113.63 | 632 | 614 | 121.8 |
| B | 7 | 221 | 35769 | 288.54 | 632 | 614 | 121.8 |
| B | 0 | 198 | 18961 | 150.58 | 632 | 614 | 121.8 |
| C | 12 | 2 | 15333 | 98.66 | 644 | 648 | 148.8 |
| C | 14 | 254 | 9516 | 59.58 | 644 | 648 | 148.8 |
| C | 12 | 250 | 8581 | 53.3 | 644 | 648 | 148.8 |
| D | 2 | 249 | 190311 | 1198.4 | 641 | 621 | 158.3 |
| D | 11 | 192 | 64910 | 406.16 | 641 | 621 | 158.3 |
| D | 8 | 176 | 34688 | 215.22 | 641 | 621 | 158.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

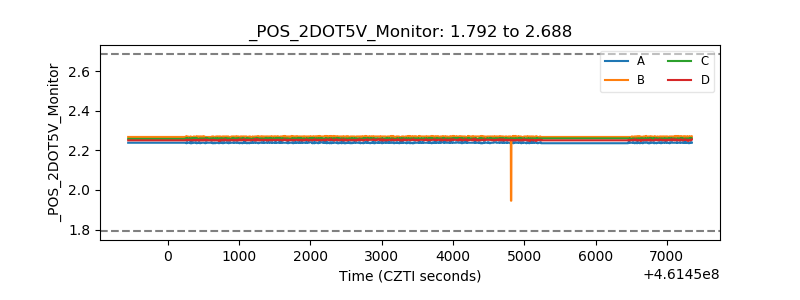

| +2.5 Volts monitor |  |

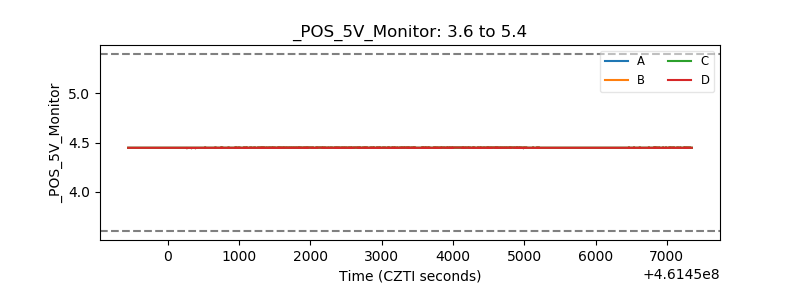

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
