| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_073T04_9000006396_48075cztM0_level2.fits | modeM0/AS1A13_073T04_9000006396_48075cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,408,960 | 102,994,560 |
| Size | 472.5 MB | 98.2 MB |
| Events in quadrant A | 8,123,482 | 888,168 |
| Events in quadrant B | 1,454,798 | 99 |
| Events in quadrant C | 3,958,084 | 864,630 |
| Events in quadrant D | 4,144,704 | 785,638 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29612 | 0 |
| B | 0 | 8959 | 0 |
| C | 0 | 18080 | 0 |
| D | 0 | 18716 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8341 | 90 | 1.079007% |
| B | 8342 | 8341 | 99.988012% |
| C | 8342 | 63 | 0.755215% |
| D | 8341 | 147 | 1.762379% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8341 | 8341 | 10 | 10 | 0.12% | 0.12% |  |
| B | 8341 | 8341 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8342 | 8342 | 69 | 69 | 0.83% | 0.83% |  |
| D | 8341 | 8341 | 133 | 133 | 1.59% | 1.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4206583 | 21958.9 | 915 | 893 | 191.5 |
| A | 10 | 255 | 358246 | 1865.82 | 915 | 893 | 191.5 |
| A | 13 | 254 | 15555 | 76.55 | 915 | 893 | 191.5 |
| B | 2 | 177 | 1150000 | 80937.67 | 59 | 58 | 14.2 |
| B | 4 | 21 | 63904 | 4493.75 | 59 | 58 | 14.2 |
| B | 12 | 111 | 1721 | 117.05 | 59 | 58 | 14.2 |
| C | 15 | 208 | 347287 | 1623.7 | 901 | 905 | 213.3 |
| C | 14 | 254 | 74541 | 345.18 | 901 | 905 | 213.3 |
| C | 10 | 20 | 21671 | 97.34 | 901 | 905 | 213.3 |
| D | 2 | 249 | 495922 | 2219.23 | 890 | 860 | 223.1 |
| D | 11 | 224 | 87246 | 387.25 | 890 | 860 | 223.1 |
| D | 2 | 165 | 70801 | 313.53 | 890 | 860 | 223.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

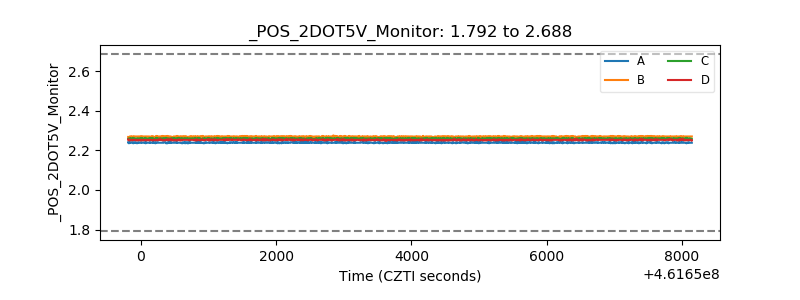

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
