| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T07_9000006398_48082cztM0_level2.fits | modeM0/AS1A13_071T07_9000006398_48082cztM0_level2_quad_clean.evt |
| Size (bytes) | 356,725,440 | 76,262,400 |
| Size | 340.2 MB | 72.7 MB |
| Events in quadrant A | 6,216,475 | 639,822 |
| Events in quadrant B | 1,052,700 | 39,172 |
| Events in quadrant C | 2,665,440 | 632,831 |
| Events in quadrant D | 2,803,226 | 581,815 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22534 | 1 |
| B | 0 | 6456 | 1 |
| C | 0 | 12466 | 1 |
| D | 0 | 12871 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5911 | 203 | 3.434275% |
| B | 5911 | 5911 | 100.000000% |
| C | 5911 | 30 | 0.507528% |
| D | 5911 | 33 | 0.558281% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7026 | 5912 | 54 | 54 | 0.77% | 0.91% |  |
| B | 7025 | 5910 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7026 | 5912 | 18 | 18 | 0.26% | 0.30% |  |
| D | 7026 | 5912 | 24 | 24 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3722562 | 27961.77 | 631 | 618 | 133.1 |
| A | 13 | 248 | 39678 | 293.45 | 631 | 618 | 133.1 |
| A | 13 | 254 | 10834 | 76.75 | 631 | 618 | 133.1 |
| B | 2 | 177 | 815389 | 79690.41 | 40 | 39 | 10.2 |
| B | 4 | 21 | 61835 | 6039.8 | 40 | 39 | 10.2 |
| B | 5 | 32 | 7883 | 766.65 | 40 | 39 | 10.2 |
| C | 14 | 254 | 207858 | 1431.23 | 618 | 623 | 144.8 |
| C | 12 | 250 | 16722 | 111.18 | 618 | 623 | 144.8 |
| C | 3 | 233 | 10598 | 68.89 | 618 | 623 | 144.8 |
| D | 2 | 249 | 211198 | 1364.02 | 618 | 600 | 154.4 |
| D | 2 | 37 | 47864 | 306.12 | 618 | 600 | 154.4 |
| D | 13 | 29 | 34061 | 216.72 | 618 | 600 | 154.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

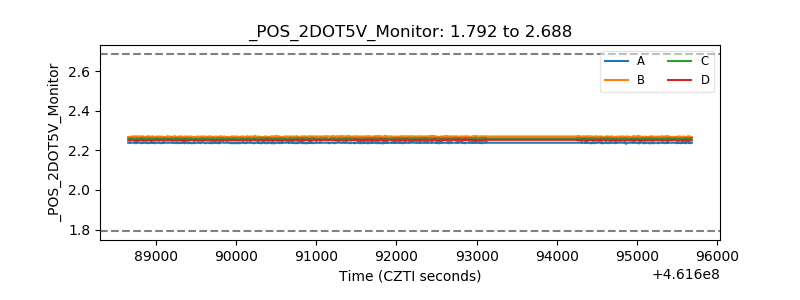

| +2.5 Volts monitor |  |

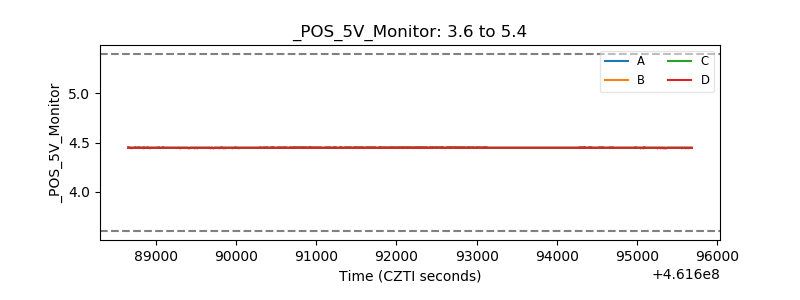

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
