| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T07_9000006398_48083cztM0_level2.fits | modeM0/AS1A13_071T07_9000006398_48083cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,547,840 | 83,865,600 |
| Size | 394.4 MB | 80.0 MB |
| Events in quadrant A | 7,009,119 | 710,576 |
| Events in quadrant B | 1,132,285 | 45,094 |
| Events in quadrant C | 2,910,140 | 703,716 |
| Events in quadrant D | 3,753,270 | 631,707 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25043 | 5 |
| B | 0 | 6921 | 2 |
| C | 0 | 13355 | 2 |
| D | 0 | 15911 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6379 | 379 | 5.941370% |
| B | 6379 | 6379 | 100.000000% |
| C | 6379 | 21 | 0.329205% |
| D | 6379 | 337 | 5.282960% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7534 | 6380 | 123 | 123 | 1.63% | 1.93% |  |
| B | 7533 | 6378 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7534 | 6379 | 15 | 15 | 0.20% | 0.24% |  |
| D | 7534 | 6380 | 291 | 291 | 3.86% | 4.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4205874 | 28912.78 | 698 | 684 | 145.4 |
| A | 13 | 248 | 62365 | 424.09 | 698 | 684 | 145.4 |
| A | 10 | 255 | 17884 | 118.26 | 698 | 684 | 145.4 |
| B | 2 | 177 | 879550 | 78000.65 | 45 | 44 | 11.3 |
| B | 4 | 21 | 52409 | 4644.09 | 45 | 44 | 11.3 |
| B | 5 | 255 | 6035 | 531.32 | 45 | 44 | 11.3 |
| C | 14 | 254 | 109395 | 678.89 | 688 | 691 | 160.1 |
| C | 12 | 250 | 52710 | 324.87 | 688 | 691 | 160.1 |
| C | 11 | 16 | 28121 | 171.31 | 688 | 691 | 160.1 |
| D | 2 | 37 | 859167 | 5063.19 | 672 | 648 | 169.6 |
| D | 2 | 249 | 103012 | 603.7 | 672 | 648 | 169.6 |
| D | 14 | 34 | 53073 | 309.18 | 672 | 648 | 169.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

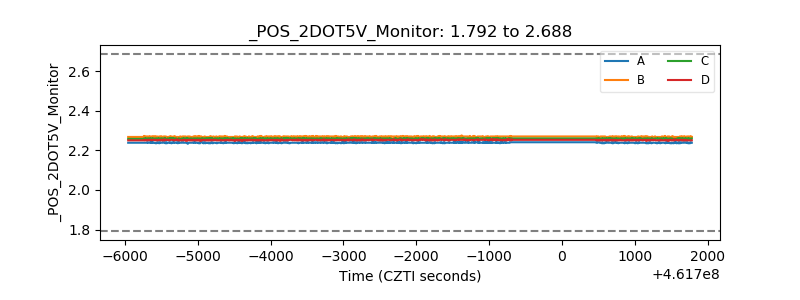

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
