| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T07_9000006398_48088cztM0_level2.fits | modeM0/AS1A13_071T07_9000006398_48088cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,804,800 | 100,180,800 |
| Size | 462.3 MB | 95.5 MB |
| Events in quadrant A | 8,035,290 | 837,185 |
| Events in quadrant B | 1,397,736 | 53,472 |
| Events in quadrant C | 3,709,142 | 829,117 |
| Events in quadrant D | 4,169,306 | 749,926 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29094 | 2 |
| B | 0 | 8607 | 2 |
| C | 0 | 17152 | 2 |
| D | 0 | 18701 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8042 | 482 | 5.993534% |
| B | 8043 | 8043 | 100.000000% |
| C | 8043 | 141 | 1.753077% |
| D | 8043 | 240 | 2.983961% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8057 | 8043 | 33 | 33 | 0.41% | 0.41% |  |
| B | 8057 | 8042 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8058 | 8044 | 34 | 34 | 0.42% | 0.42% |  |
| D | 8058 | 8044 | 167 | 167 | 2.07% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4461282 | 24285.77 | 878 | 857 | 183.7 |
| A | 13 | 248 | 122493 | 662.27 | 878 | 857 | 183.7 |
| A | 14 | 248 | 36663 | 194.95 | 878 | 857 | 183.7 |
| B | 2 | 177 | 1108383 | 78768.19 | 58 | 57 | 14.1 |
| B | 5 | 255 | 22875 | 1621.66 | 58 | 57 | 14.1 |
| B | 4 | 21 | 18252 | 1293.11 | 58 | 57 | 14.1 |
| C | 12 | 2 | 113954 | 546.74 | 880 | 881 | 206.8 |
| C | 14 | 254 | 103921 | 498.23 | 880 | 881 | 206.8 |
| C | 12 | 250 | 35616 | 167.95 | 880 | 881 | 206.8 |
| D | 2 | 249 | 630294 | 2867.35 | 870 | 838 | 219.5 |
| D | 11 | 224 | 146947 | 665.57 | 870 | 838 | 219.5 |
| D | 2 | 234 | 39712 | 177.08 | 870 | 838 | 219.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

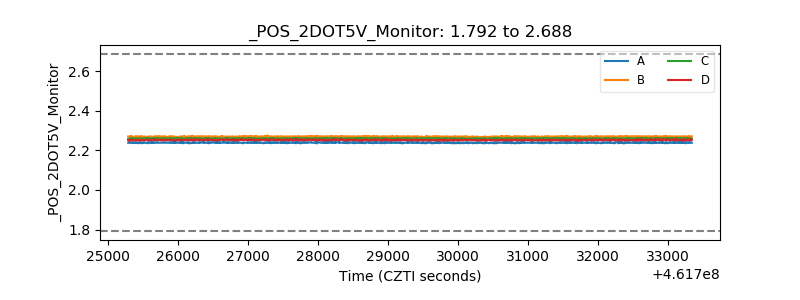

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
