| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T07_9000006398_48089cztM0_level2.fits | modeM0/AS1A13_071T07_9000006398_48089cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,269,120 | 99,961,920 |
| Size | 453.3 MB | 95.3 MB |
| Events in quadrant A | 8,030,995 | 837,487 |
| Events in quadrant B | 1,444,636 | 112 |
| Events in quadrant C | 3,721,865 | 843,903 |
| Events in quadrant D | 3,746,785 | 773,726 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29507 | 1 |
| B | 0 | 8849 | 0 |
| C | 0 | 17402 | 0 |
| D | 0 | 17552 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8221 | 284 | 3.454568% |
| B | 8221 | 8220 | 99.987836% |
| C | 8221 | 101 | 1.228561% |
| D | 8221 | 62 | 0.754166% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8221 | 8221 | 6 | 6 | 0.07% | 0.07% |  |
| B | 8220 | 8220 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8221 | 8221 | 25 | 25 | 0.30% | 0.30% |  |
| D | 8221 | 8221 | 13 | 13 | 0.16% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4454965 | 23548.25 | 903 | 879 | 189.1 |
| A | 14 | 248 | 41187 | 213.1 | 903 | 879 | 189.1 |
| A | 7 | 3 | 28528 | 146.18 | 903 | 879 | 189.1 |
| B | 2 | 177 | 1132061 | 79360.2 | 59 | 57 | 14.3 |
| B | 4 | 21 | 40274 | 2819.45 | 59 | 57 | 14.3 |
| B | 5 | 255 | 17945 | 1254.05 | 59 | 57 | 14.3 |
| C | 14 | 254 | 139381 | 653.75 | 904 | 908 | 211.8 |
| C | 12 | 250 | 23163 | 105.07 | 904 | 908 | 211.8 |
| C | 12 | 249 | 12410 | 54.3 | 904 | 908 | 211.8 |
| D | 11 | 224 | 182494 | 815.56 | 896 | 866 | 222.7 |
| D | 2 | 165 | 48775 | 215.12 | 896 | 866 | 222.7 |
| D | 2 | 234 | 44869 | 197.59 | 896 | 866 | 222.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

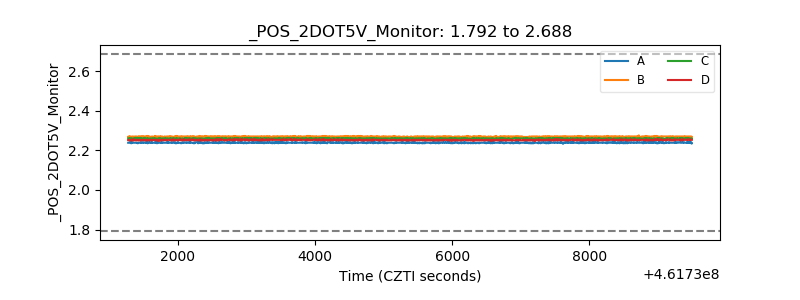

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
