| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006400_48100cztM0_level2.fits | modeM0/AS1A13_071T03_9000006400_48100cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,203,840 | 81,048,960 |
| Size | 464.6 MB | 77.3 MB |
| Events in quadrant A | 7,183,853 | 713,740 |
| Events in quadrant B | 1,140,474 | 43,943 |
| Events in quadrant C | 2,930,141 | 713,748 |
| Events in quadrant D | 6,265,481 | 523,043 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25891 | 5 |
| B | 0 | 7012 | 2 |
| C | 0 | 13628 | 2 |
| D | 0 | 23248 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6531 | 425 | 6.507426% |
| B | 6531 | 6531 | 100.000000% |
| C | 6531 | 16 | 0.244985% |
| D | 6531 | 1593 | 24.391364% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7591 | 6531 | 165 | 165 | 2.17% | 2.53% |  |
| B | 7590 | 6530 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7591 | 6532 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7591 | 6532 | 1338 | 1338 | 17.63% | 20.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4255836 | 28194.28 | 720 | 705 | 150.9 |
| A | 14 | 248 | 70897 | 465.09 | 720 | 705 | 150.9 |
| A | 13 | 248 | 43869 | 286.0 | 720 | 705 | 150.9 |
| B | 2 | 177 | 902133 | 78081.59 | 46 | 45 | 11.6 |
| B | 5 | 32 | 14758 | 1273.51 | 46 | 45 | 11.6 |
| B | 4 | 21 | 12710 | 1096.24 | 46 | 45 | 11.6 |
| C | 12 | 2 | 53048 | 307.83 | 719 | 722 | 170.0 |
| C | 14 | 254 | 36898 | 212.82 | 719 | 722 | 170.0 |
| C | 12 | 250 | 32327 | 185.93 | 719 | 722 | 170.0 |
| D | 2 | 37 | 3644322 | 23986.09 | 604 | 584 | 151.9 |
| D | 11 | 224 | 95436 | 624.39 | 604 | 584 | 151.9 |
| D | 2 | 165 | 75164 | 490.95 | 604 | 584 | 151.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

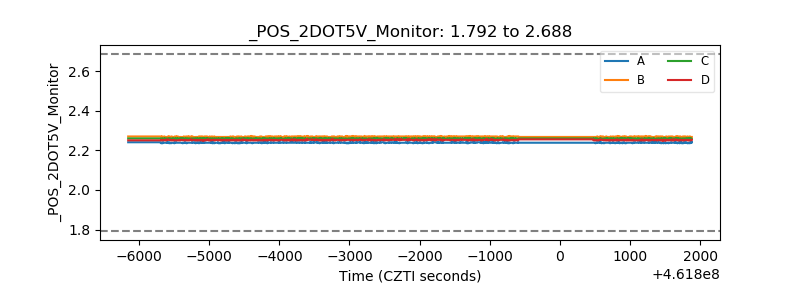

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
