| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006400_48103cztM0_level2.fits | modeM0/AS1A13_071T03_9000006400_48103cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,523,577,600 | 279,420,480 |
| Size | 1.4 GB | 266.5 MB |
| Events in quadrant A | 23,740,980 | 2,393,099 |
| Events in quadrant B | 4,049,173 | 345 |
| Events in quadrant C | 10,361,587 | 2,444,412 |
| Events in quadrant D | 16,415,765 | 2,017,168 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 86081 | 3 |
| B | 0 | 24933 | 3 |
| C | 0 | 48601 | 3 |
| D | 0 | 66208 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 472 | 0 |
| B | 0 | 472 | 0 |
| C | 0 | 472 | 0 |
| D | 0 | 472 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23323 | 910 | 3.901728% |
| B | 23324 | 23321 | 99.987138% |
| C | 23324 | 108 | 0.463042% |
| D | 23324 | 2439 | 10.457040% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25588 | 23326 | 223 | 223 | 0.87% | 0.96% |  |
| B | 25588 | 23323 | 5 | 5 | 0.02% | 0.02% |  |
| C | 25589 | 23328 | 24 | 24 | 0.09% | 0.10% |  |
| D | 25589 | 23327 | 2065 | 2065 | 8.07% | 8.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 13358880 | 25262.22 | 2550 | 2491 | 528.7 |
| A | 14 | 248 | 393772 | 740.07 | 2550 | 2491 | 528.7 |
| A | 13 | 248 | 70746 | 129.1 | 2550 | 2491 | 528.7 |
| B | 2 | 177 | 3219325 | 90798.36 | 167 | 162 | 35.5 |
| B | 5 | 32 | 43347 | 1218.06 | 167 | 162 | 35.5 |
| B | 4 | 21 | 38477 | 1080.7 | 167 | 162 | 35.5 |
| C | 14 | 254 | 191444 | 315.63 | 2548 | 2566 | 598.4 |
| C | 12 | 2 | 116161 | 189.82 | 2548 | 2566 | 598.4 |
| C | 12 | 250 | 97137 | 158.03 | 2548 | 2566 | 598.4 |
| D | 2 | 37 | 3778070 | 6315.36 | 2380 | 2307 | 597.9 |
| D | 12 | 2 | 1338011 | 2234.1 | 2380 | 2307 | 597.9 |
| D | 2 | 165 | 1026439 | 1712.97 | 2380 | 2307 | 597.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

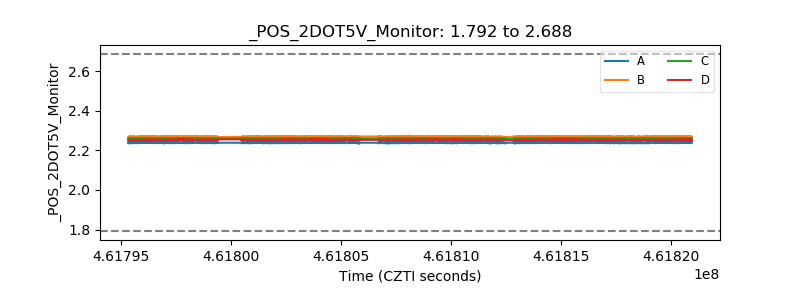

| +2.5 Volts monitor |  |

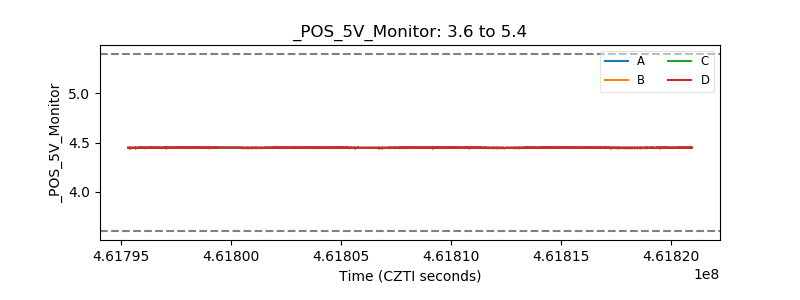

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
