| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T03_9000006400_48107cztM0_level2.fits | modeM0/AS1A13_071T03_9000006400_48107cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,224,000,000 | 229,792,320 |
| Size | 1.1 GB | 219.1 MB |
| Events in quadrant A | 19,820,495 | 1,929,785 |
| Events in quadrant B | 3,335,393 | 317 |
| Events in quadrant C | 8,615,348 | 1,966,394 |
| Events in quadrant D | 12,012,313 | 1,723,213 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74132 | 3 |
| B | 0 | 20628 | 3 |
| C | 0 | 40376 | 3 |
| D | 0 | 49772 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 392 | 0 |
| B | 0 | 392 | 0 |
| C | 0 | 392 | 0 |
| D | 0 | 392 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19415 | 813 | 4.187484% |
| B | 19415 | 19410 | 99.974247% |
| C | 19416 | 345 | 1.776885% |
| D | 19415 | 1027 | 5.289724% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20460 | 19415 | 51 | 51 | 0.25% | 0.26% |  |
| B | 20459 | 19414 | 0 | 0 | 0.00% | 0.00% |  |
| C | 20461 | 19418 | 16 | 16 | 0.08% | 0.08% |  |
| D | 20460 | 19416 | 683 | 683 | 3.34% | 3.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10881007 | 24407.07 | 2143 | 2095 | 445.7 |
| A | 14 | 248 | 449229 | 1003.15 | 2143 | 2095 | 445.7 |
| A | 3 | 7 | 115874 | 255.27 | 2143 | 2095 | 445.7 |
| B | 2 | 177 | 2679975 | 87708.93 | 140 | 136 | 30.6 |
| B | 4 | 21 | 55451 | 1810.41 | 140 | 136 | 30.6 |
| B | 0 | 200 | 13979 | 453.07 | 140 | 136 | 30.6 |
| C | 14 | 254 | 78825 | 150.82 | 2149 | 2155 | 508.4 |
| C | 10 | 20 | 65512 | 124.63 | 2149 | 2155 | 508.4 |
| C | 12 | 250 | 50617 | 95.33 | 2149 | 2155 | 508.4 |
| D | 12 | 2 | 2624092 | 4983.05 | 2103 | 2035 | 526.2 |
| D | 2 | 37 | 451532 | 854.24 | 2103 | 2035 | 526.2 |
| D | 11 | 224 | 252982 | 476.91 | 2103 | 2035 | 526.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

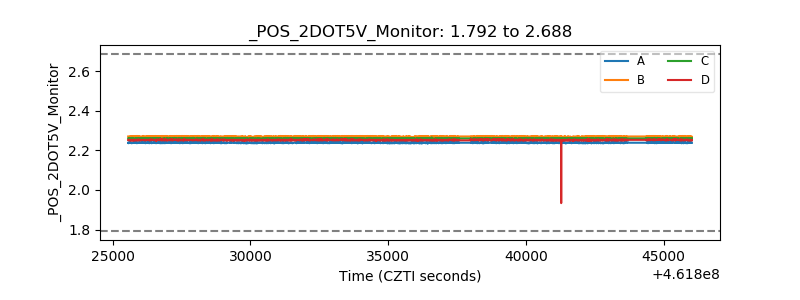

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
