| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_223T01_9000006402_48112cztM0_level2.fits | modeM0/AS1T05_223T01_9000006402_48112cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,691,200 | 78,888,960 |
| Size | 481.3 MB | 75.2 MB |
| Events in quadrant A | 6,477,331 | 681,555 |
| Events in quadrant B | 1,038,243 | 42,300 |
| Events in quadrant C | 2,646,458 | 676,983 |
| Events in quadrant D | 8,040,977 | 558,738 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23376 | 1 |
| B | 0 | 6441 | 1 |
| C | 0 | 12455 | 1 |
| D | 0 | 28084 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6088 | 265 | 4.352825% |
| B | 6089 | 6089 | 100.000000% |
| C | 6089 | 59 | 0.968960% |
| D | 6089 | 1607 | 26.391854% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7228 | 6088 | 46 | 46 | 0.64% | 0.76% |  |
| B | 7228 | 6088 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7229 | 6089 | 12 | 12 | 0.17% | 0.20% |  |
| D | 7228 | 6088 | 1590 | 1590 | 22.00% | 26.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3851194 | 27581.36 | 673 | 657 | 139.6 |
| A | 13 | 248 | 16341 | 112.34 | 673 | 657 | 139.6 |
| A | 13 | 254 | 12499 | 84.82 | 673 | 657 | 139.6 |
| B | 2 | 177 | 841958 | 79574.73 | 43 | 42 | 10.6 |
| B | 4 | 21 | 11969 | 1127.3 | 43 | 42 | 10.6 |
| B | 0 | 198 | 3795 | 354.72 | 43 | 42 | 10.6 |
| C | 14 | 254 | 38218 | 241.38 | 664 | 665 | 155.6 |
| C | 14 | 67 | 8351 | 49.4 | 664 | 665 | 155.6 |
| C | 12 | 250 | 6055 | 34.65 | 664 | 665 | 155.6 |
| D | 7 | 67 | 3431487 | 22934.68 | 597 | 578 | 149.6 |
| D | 2 | 37 | 1902830 | 12716.03 | 597 | 578 | 149.6 |
| D | 2 | 165 | 128430 | 854.66 | 597 | 578 | 149.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

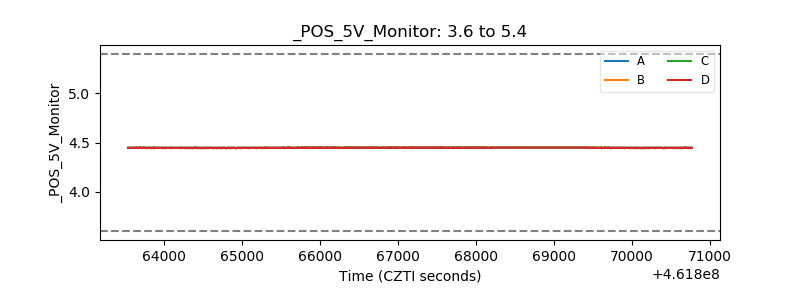

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
