| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_223T01_9000006402_48128cztM0_level2.fits | modeM0/AS1T05_223T01_9000006402_48128cztM0_level2_quad_clean.evt |
| Size (bytes) | 411,232,320 | 87,168,960 |
| Size | 392.2 MB | 83.1 MB |
| Events in quadrant A | 7,182,505 | 735,067 |
| Events in quadrant B | 1,153,957 | 44,860 |
| Events in quadrant C | 2,921,446 | 734,345 |
| Events in quadrant D | 3,453,756 | 669,575 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25744 | 4 |
| B | 0 | 7027 | 2 |
| C | 0 | 13360 | 2 |
| D | 0 | 14988 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6474 | 490 | 7.568736% |
| B | 6474 | 6474 | 100.000000% |
| C | 6474 | 54 | 0.834106% |
| D | 6474 | 191 | 2.950263% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7643 | 6473 | 186 | 186 | 2.43% | 2.87% |  |
| B | 7643 | 6473 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7643 | 6473 | 11 | 11 | 0.14% | 0.17% |  |
| D | 7643 | 6473 | 130 | 130 | 1.70% | 2.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4207556 | 28578.57 | 721 | 707 | 147.2 |
| A | 13 | 248 | 92956 | 626.68 | 721 | 707 | 147.2 |
| A | 7 | 3 | 81663 | 549.96 | 721 | 707 | 147.2 |
| B | 2 | 177 | 891634 | 79024.51 | 45 | 44 | 11.3 |
| B | 4 | 171 | 56244 | 4981.19 | 45 | 44 | 11.3 |
| B | 4 | 21 | 10254 | 904.95 | 45 | 44 | 11.3 |
| C | 14 | 254 | 69744 | 413.22 | 717 | 719 | 167.0 |
| C | 1 | 16 | 28517 | 166.42 | 717 | 719 | 167.0 |
| C | 12 | 250 | 19687 | 113.55 | 717 | 719 | 167.0 |
| D | 2 | 37 | 357196 | 2015.25 | 712 | 687 | 176.9 |
| D | 2 | 165 | 184538 | 1039.26 | 712 | 687 | 176.9 |
| D | 13 | 23 | 55507 | 309.88 | 712 | 687 | 176.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

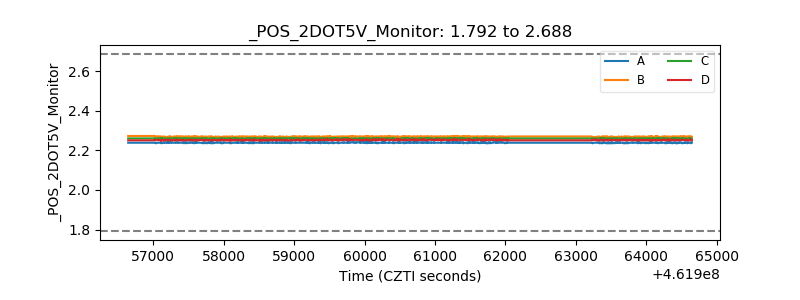

| +2.5 Volts monitor |  |

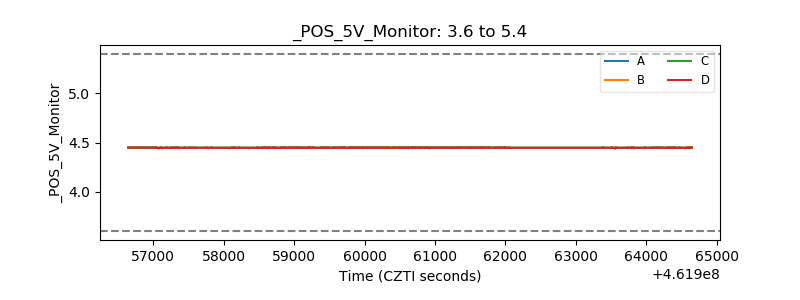

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
