| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_009T01_9000006406_48140cztM0_level2.fits | modeM0/AS1C09_009T01_9000006406_48140cztM0_level2_quad_clean.evt |
| Size (bytes) | 687,804,480 | 86,780,160 |
| Size | 655.9 MB | 82.8 MB |
| Events in quadrant A | 7,655,194 | 806,568 |
| Events in quadrant B | 1,188,036 | 48,417 |
| Events in quadrant C | 3,697,016 | 782,600 |
| Events in quadrant D | 12,390,631 | 514,584 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27560 | 1 |
| B | 0 | 7321 | 1 |
| C | 0 | 15563 | 1 |
| D | 0 | 41418 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6750 | 313 | 4.637037% |
| B | 6751 | 6751 | 100.000000% |
| C | 6751 | 178 | 2.636646% |
| D | 6750 | 3729 | 55.244444% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7800 | 6751 | 32 | 32 | 0.41% | 0.47% |  |
| B | 7801 | 6730 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7801 | 6752 | 132 | 132 | 1.69% | 1.95% |  |
| D | 7800 | 6750 | 3201 | 3201 | 41.04% | 47.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4396719 | 26359.88 | 801 | 786 | 166.8 |
| A | 13 | 6 | 91962 | 546.73 | 801 | 786 | 166.8 |
| A | 13 | 248 | 56643 | 334.94 | 801 | 786 | 166.8 |
| B | 2 | 177 | 931015 | 76307.61 | 50 | 48 | 12.2 |
| B | 4 | 21 | 21337 | 1744.97 | 50 | 48 | 12.2 |
| B | 0 | 200 | 20100 | 1643.58 | 50 | 48 | 12.2 |
| C | 10 | 187 | 483291 | 2603.02 | 786 | 792 | 185.4 |
| C | 12 | 2 | 99000 | 529.82 | 786 | 792 | 185.4 |
| C | 12 | 249 | 20089 | 104.11 | 786 | 792 | 185.4 |
| D | 12 | 2 | 9343575 | 63998.42 | 573 | 557 | 146.0 |
| D | 2 | 37 | 282616 | 1932.07 | 573 | 557 | 146.0 |
| D | 2 | 165 | 192815 | 1316.94 | 573 | 557 | 146.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

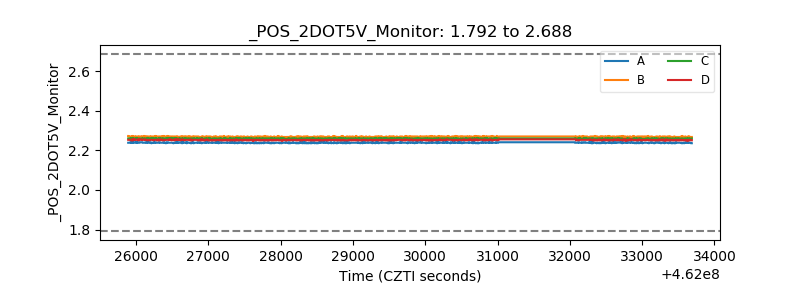

| +2.5 Volts monitor |  |

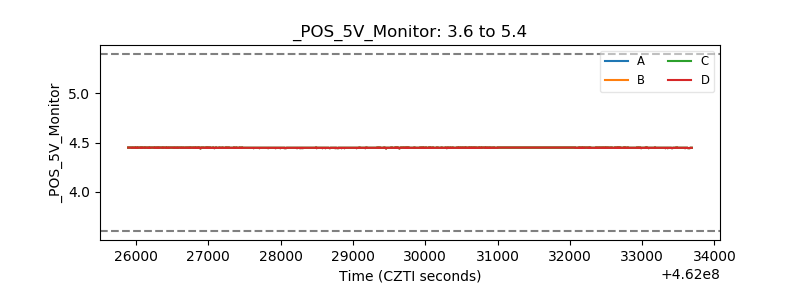

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
