| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_009T01_9000006406_48144cztM0_level2.fits | modeM0/AS1C09_009T01_9000006406_48144cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,313,600 | 91,987,200 |
| Size | 434.2 MB | 87.7 MB |
| Events in quadrant A | 7,765,883 | 788,999 |
| Events in quadrant B | 1,166,994 | 47,966 |
| Events in quadrant C | 3,159,914 | 777,946 |
| Events in quadrant D | 4,241,913 | 707,227 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27634 | 4 |
| B | 0 | 7164 | 2 |
| C | 0 | 13837 | 2 |
| D | 0 | 17078 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6592 | 588 | 8.919903% |
| B | 6592 | 6592 | 100.000000% |
| C | 6592 | 89 | 1.350121% |
| D | 6592 | 146 | 2.214806% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6593 | 150 | 150 | 1.98% | 2.28% |  |
| B | 7581 | 6569 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7582 | 6593 | 18 | 18 | 0.24% | 0.27% |  |
| D | 7582 | 6593 | 76 | 76 | 1.00% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4559428 | 27855.54 | 775 | 760 | 163.7 |
| A | 13 | 248 | 162837 | 990.36 | 775 | 760 | 163.7 |
| A | 3 | 14 | 16632 | 96.99 | 775 | 760 | 163.7 |
| B | 2 | 177 | 908445 | 74742.16 | 49 | 48 | 12.2 |
| B | 0 | 200 | 19665 | 1614.07 | 49 | 48 | 12.2 |
| B | 4 | 171 | 15367 | 1260.43 | 49 | 48 | 12.2 |
| C | 12 | 2 | 52580 | 278.82 | 782 | 788 | 185.8 |
| C | 12 | 250 | 35354 | 186.08 | 782 | 788 | 185.8 |
| C | 0 | 207 | 16056 | 82.19 | 782 | 788 | 185.8 |
| D | 12 | 2 | 421026 | 2131.28 | 778 | 756 | 197.2 |
| D | 2 | 165 | 404763 | 2048.81 | 778 | 756 | 197.2 |
| D | 2 | 37 | 204321 | 1032.32 | 778 | 756 | 197.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

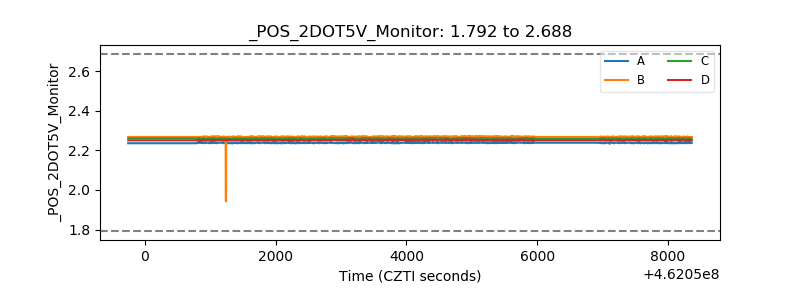

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
