| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_009T01_9000006406_48151cztM0_level2.fits | modeM0/AS1C09_009T01_9000006406_48151cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,143,097,920 | 242,504,640 |
| Size | 1.1 GB | 231.3 MB |
| Events in quadrant A | 19,092,138 | 2,071,630 |
| Events in quadrant B | 3,212,442 | 130,720 |
| Events in quadrant C | 8,340,821 | 2,039,184 |
| Events in quadrant D | 10,227,954 | 1,826,905 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 376 | 0 |
| B | 0 | 376 | 0 |
| C | 0 | 376 | 0 |
| D | 0 | 376 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 69470 | 49 |
| B | 0 | 19703 | 6 |
| C | 0 | 38129 | 15 |
| D | 0 | 43779 | 24 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18333 | 631 | 3.441881% |
| B | 18346 | 18346 | 100.000000% |
| C | 18341 | 144 | 0.785126% |
| D | 18337 | 478 | 2.606751% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19820 | 18348 | 24 | 24 | 0.12% | 0.13% |  |
| B | 19820 | 18281 | 1 | 1 | 0.01% | 0.01% |  |
| C | 19820 | 18350 | 23 | 23 | 0.12% | 0.13% |  |
| D | 19821 | 18347 | 214 | 214 | 1.08% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10832778 | 24883.99 | 2073 | 2032 | 435.2 |
| A | 13 | 248 | 98534 | 221.72 | 2073 | 2032 | 435.2 |
| A | 0 | 31 | 69999 | 156.16 | 2073 | 2032 | 435.2 |
| B | 2 | 177 | 2531022 | 84974.27 | 135 | 132 | 29.8 |
| B | 4 | 21 | 101173 | 3392.44 | 135 | 132 | 29.8 |
| B | 4 | 171 | 30411 | 1016.61 | 135 | 132 | 29.8 |
| C | 14 | 254 | 178192 | 361.65 | 2050 | 2068 | 487.0 |
| C | 12 | 2 | 88237 | 176.94 | 2050 | 2068 | 487.0 |
| C | 1 | 3 | 51175 | 100.84 | 2050 | 2068 | 487.0 |
| D | 2 | 165 | 1220507 | 2357.66 | 2040 | 1979 | 516.8 |
| D | 2 | 37 | 305519 | 587.3 | 2040 | 1979 | 516.8 |
| D | 11 | 192 | 216661 | 415.37 | 2040 | 1979 | 516.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

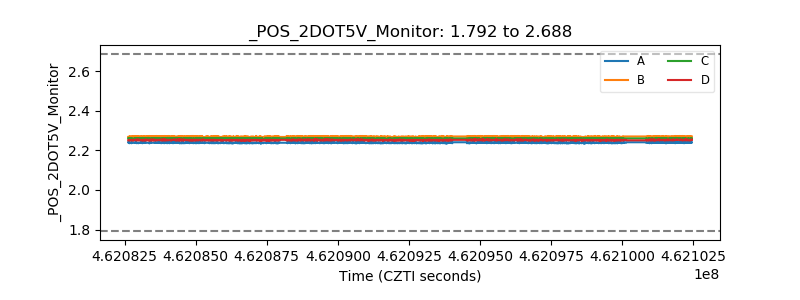

| +2.5 Volts monitor |  |

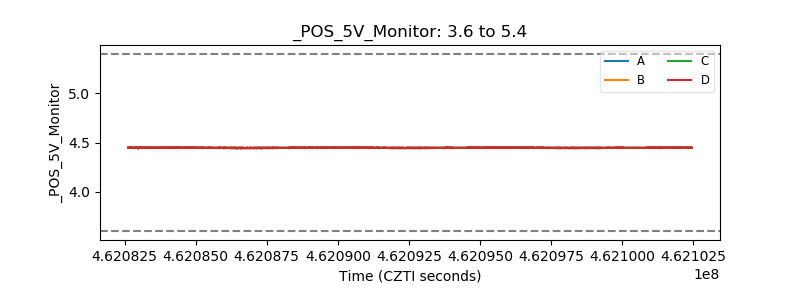

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
