| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_009T01_9000006406_48159cztM0_level2.fits | modeM0/AS1C09_009T01_9000006406_48159cztM0_level2_quad_clean.evt |
| Size (bytes) | 234,020,160 | 50,909,760 |
| Size | 223.2 MB | 48.6 MB |
| Events in quadrant A | 4,214,072 | 437,069 |
| Events in quadrant B | 659,360 | 21,164 |
| Events in quadrant C | 1,704,028 | 428,023 |
| Events in quadrant D | 1,791,588 | 391,683 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 76 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15014 | 0 |
| B | 0 | 4026 | 0 |
| C | 0 | 7715 | 0 |
| D | 0 | 7956 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3700 | 231 | 6.243243% |
| B | 3700 | 3700 | 100.000000% |
| C | 3700 | 10 | 0.270270% |
| D | 3700 | 16 | 0.432432% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3700 | 3700 | 58 | 58 | 1.57% | 1.57% |  |
| B | 3700 | 3689 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3700 | 3700 | 7 | 7 | 0.19% | 0.19% |  |
| D | 3700 | 3700 | 13 | 13 | 0.35% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2529631 | 29106.65 | 410 | 404 | 86.9 |
| A | 15 | 174 | 70487 | 806.52 | 410 | 404 | 86.9 |
| A | 0 | 243 | 11146 | 123.62 | 410 | 404 | 86.9 |
| B | 2 | 177 | 510410 | 70551.21 | 25 | 25 | 7.2 |
| B | 5 | 32 | 17348 | 2394.58 | 25 | 25 | 7.2 |
| B | 4 | 21 | 10603 | 1462.21 | 25 | 25 | 7.2 |
| C | 12 | 2 | 59758 | 597.73 | 413 | 415 | 99.3 |
| C | 0 | 207 | 18240 | 179.54 | 413 | 415 | 99.3 |
| C | 14 | 254 | 8398 | 80.41 | 413 | 415 | 99.3 |
| D | 7 | 67 | 50664 | 475.52 | 410 | 397 | 105.7 |
| D | 11 | 224 | 31550 | 294.71 | 410 | 397 | 105.7 |
| D | 11 | 192 | 29331 | 273.71 | 410 | 397 | 105.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

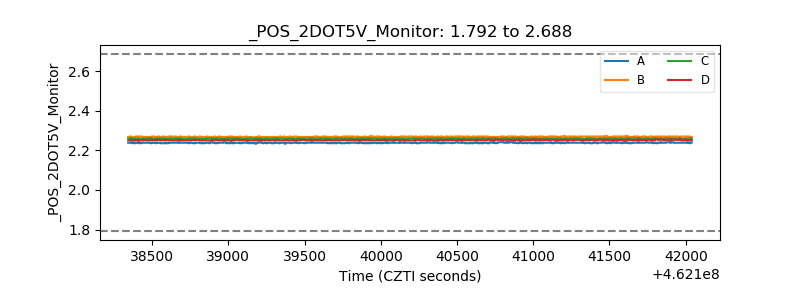

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
