| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_221T01_9000006404_48132cztM0_level2.fits | modeM0/AS1T05_221T01_9000006404_48132cztM0_level2_quad_clean.evt |
| Size (bytes) | 348,304,320 | 77,906,880 |
| Size | 332.2 MB | 74.3 MB |
| Events in quadrant A | 5,889,589 | 660,776 |
| Events in quadrant B | 1,031,513 | 38,538 |
| Events in quadrant C | 2,686,370 | 640,335 |
| Events in quadrant D | 2,800,618 | 587,856 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21516 | 7 |
| B | 0 | 6441 | 0 |
| C | 0 | 12708 | 0 |
| D | 0 | 13078 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6138 | 60 | 0.977517% |
| B | 6140 | 6140 | 100.000000% |
| C | 6140 | 6 | 0.097720% |
| D | 6140 | 18 | 0.293160% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6140 | 6139 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6139 | 6127 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6140 | 6140 | 2 | 2 | 0.03% | 0.03% |  |
| D | 6140 | 6140 | 13 | 13 | 0.21% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3149554 | 22039.39 | 685 | 671 | 142.9 |
| A | 0 | 31 | 89591 | 622.36 | 685 | 671 | 142.9 |
| A | 13 | 254 | 12011 | 79.37 | 685 | 671 | 142.9 |
| B | 2 | 177 | 850580 | 81044.7 | 41 | 40 | 10.5 |
| B | 4 | 21 | 6326 | 598.97 | 41 | 40 | 10.5 |
| B | 0 | 200 | 5911 | 559.43 | 41 | 40 | 10.5 |
| C | 12 | 2 | 20709 | 125.17 | 675 | 677 | 160.0 |
| C | 14 | 254 | 13811 | 82.07 | 675 | 677 | 160.0 |
| C | 12 | 249 | 13230 | 78.44 | 675 | 677 | 160.0 |
| D | 2 | 165 | 104380 | 605.76 | 672 | 650 | 171.2 |
| D | 2 | 249 | 33384 | 191.16 | 672 | 650 | 171.2 |
| D | 2 | 234 | 31339 | 179.22 | 672 | 650 | 171.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

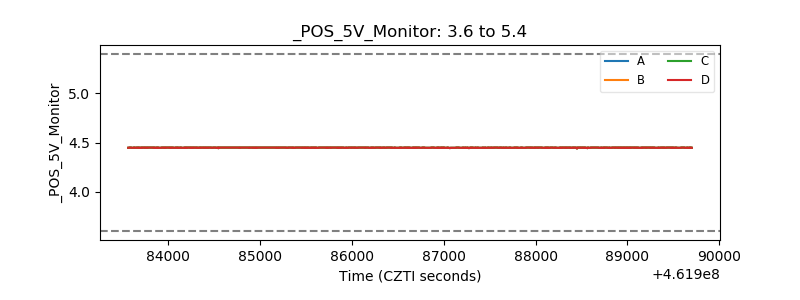

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
