| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_221T01_9000006404_48136cztM0_level2.fits | modeM0/AS1T05_221T01_9000006404_48136cztM0_level2_quad_clean.evt |
| Size (bytes) | 912,274,560 | 192,934,080 |
| Size | 870.0 MB | 184.0 MB |
| Events in quadrant A | 15,476,245 | 1,643,263 |
| Events in quadrant B | 2,691,107 | 127 |
| Events in quadrant C | 7,129,093 | 1,623,629 |
| Events in quadrant D | 7,216,629 | 1,472,586 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 322 | 0 |
| B | 0 | 322 | 0 |
| C | 0 | 322 | 0 |
| D | 0 | 320 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58339 | 122 |
| B | 0 | 16769 | 2 |
| C | 0 | 33270 | 33 |
| D | 0 | 33753 | 43 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15949 | 458 | 2.871653% |
| B | 15989 | 15988 | 99.993746% |
| C | 15972 | 155 | 0.970448% |
| D | 15969 | 191 | 1.196067% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16444 | 15986 | 1 | 1 | 0.01% | 0.01% |  |
| B | 16445 | 15955 | 0 | 0 | 0.00% | 0.00% |  |
| C | 16445 | 15989 | 39 | 39 | 0.24% | 0.24% |  |
| D | 16445 | 15989 | 62 | 62 | 0.38% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8545825 | 23307.7 | 1761 | 1722 | 366.6 |
| A | 0 | 31 | 115687 | 310.89 | 1761 | 1722 | 366.6 |
| A | 13 | 254 | 28392 | 72.75 | 1761 | 1722 | 366.6 |
| B | 2 | 177 | 2212200 | 90443.25 | 111 | 108 | 24.5 |
| B | 0 | 200 | 18445 | 749.72 | 111 | 108 | 24.5 |
| B | 4 | 21 | 14548 | 590.39 | 111 | 108 | 24.5 |
| C | 12 | 2 | 250610 | 613.87 | 1736 | 1744 | 405.4 |
| C | 10 | 187 | 41524 | 98.12 | 1736 | 1744 | 405.4 |
| C | 12 | 249 | 37693 | 88.67 | 1736 | 1744 | 405.4 |
| D | 6 | 239 | 201337 | 457.91 | 1735 | 1677 | 436.0 |
| D | 2 | 37 | 113976 | 257.55 | 1735 | 1677 | 436.0 |
| D | 2 | 234 | 80484 | 180.74 | 1735 | 1677 | 436.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

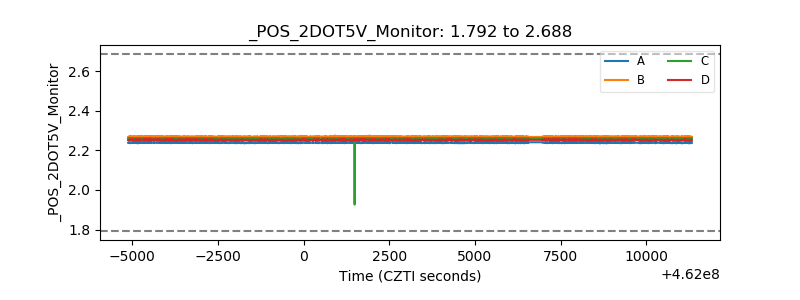

| +2.5 Volts monitor |  |

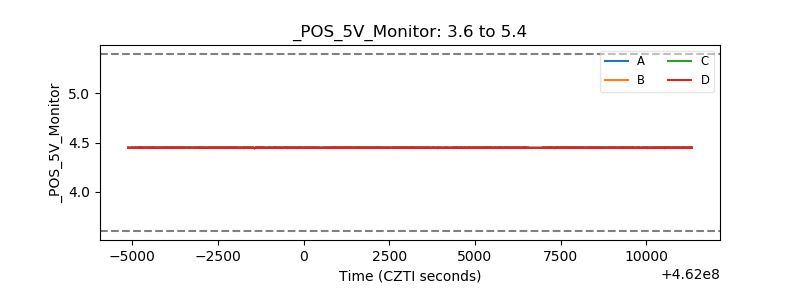

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
