| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T05_9000006408_48159cztM0_level2.fits | modeM0/AS1C09_004T05_9000006408_48159cztM0_level2_quad_clean.evt |
| Size (bytes) | 134,674,560 | 27,351,360 |
| Size | 128.4 MB | 26.1 MB |
| Events in quadrant A | 2,352,246 | 233,407 |
| Events in quadrant B | 347,891 | 4,907 |
| Events in quadrant C | 1,021,693 | 226,375 |
| Events in quadrant D | 1,098,874 | 213,398 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8568 | 1 |
| B | 0 | 2156 | 1 |
| C | 0 | 4474 | 1 |
| D | 0 | 4650 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2052 | 191 | 9.307992% |
| B | 2052 | 2052 | 100.000000% |
| C | 2052 | 29 | 1.413255% |
| D | 2052 | 27 | 1.315789% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2872 | 2054 | 25 | 25 | 0.87% | 1.22% |  |
| B | 2871 | 2046 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2872 | 2054 | 9 | 9 | 0.31% | 0.44% |  |
| D | 2872 | 2054 | 5 | 5 | 0.17% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1410607 | 27330.91 | 237 | 231 | 51.6 |
| A | 0 | 243 | 9289 | 175.53 | 237 | 231 | 51.6 |
| A | 10 | 255 | 4594 | 84.55 | 237 | 231 | 51.6 |
| B | 2 | 177 | 283011 | 56462.76 | 15 | 15 | 5.0 |
| B | 4 | 21 | 1814 | 358.93 | 15 | 15 | 5.0 |
| B | 4 | 171 | 592 | 115.12 | 15 | 15 | 5.0 |
| C | 12 | 2 | 67054 | 1122.65 | 243 | 241 | 59.5 |
| C | 14 | 254 | 3666 | 57.55 | 243 | 241 | 59.5 |
| C | 13 | 61 | 1602 | 22.87 | 243 | 241 | 59.5 |
| D | 7 | 67 | 102447 | 1623.01 | 245 | 237 | 63.0 |
| D | 12 | 2 | 21329 | 334.92 | 245 | 237 | 63.0 |
| D | 2 | 165 | 15943 | 249.4 | 245 | 237 | 63.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

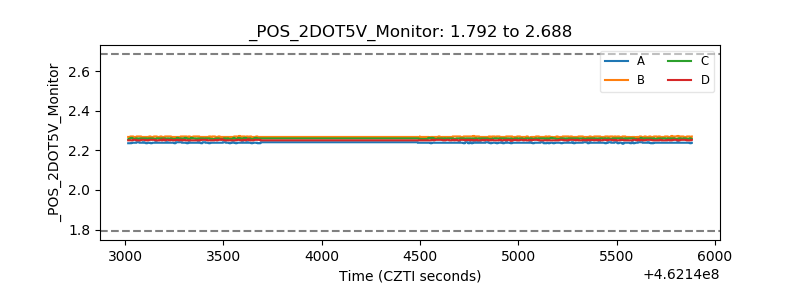

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
